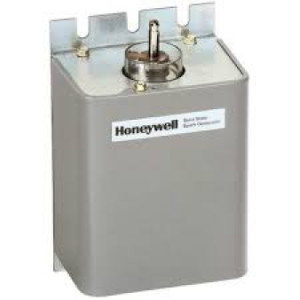

* product series image displayed

Q624A1014 | Honeywell | Combustion Control & Flame Safety

List Price:

Today's Price:

product specifications

Power Supply

AC Line Power

Electrical Ratings:

Voltage and Frequency: 120 Vac, 50/60 Hz.

Output Voltage: 10,000 volts.

Primary VA Rating: 66 VA at 120 Vac.

Spark Characteristics:

Firing Rage: 60 sparks per second.

Voltage, peak-to-peak: 22,000 volts nonsinusoidal.

Firing cycle peak voltage: 15,000 volts ±500 volts, open circuit.

Energy Discharge: 200 millijoules per spark.

Discharge Time: 0.3 milliseconds per spark.

Power Dissipation: approximately 12 watts per second.

Maximum High Voltage Lead Length:

15 ft. (4.6 m)

Maximum Spark Gap:

1/4 in. (6 mm)

Ambient Temperature Range:

-40°F to +125°F (-40°C to +52°C).

Maximum Ambient Humidity:

95 percent RH.

Ignites gas pilots with spark gaps up to 1/4 inch (6 millimeters) in length.
15,000 volts peak voltage for reliable lightoff.
Prevents detection of the ignition spark when properly applied in a flame detection system with the C7027,C7035, or C7044 MinipeeperÆ or C7061 Dynamic Self-Check Ultraviolet Flame Detector.
Ignition spark and ultraviolet detector are synchronized by the alternating current supply voltage; spark occurs on one half of the ac cycle and detector operates on the opposite half cycle.
Recommended for interrupted ignition applications only.
Mounts in the same space used by conventional ignition transformer.

Series Description

The Q624A is a solid state spark generator (transformer) for use on commercial or industrial gas burners.

Kele Description

Spark generator with knurled thumb screw

Manufacturer

Honeywell
