CVB4022AS-VAV1 | Honeywell | Thermostats & Controllers

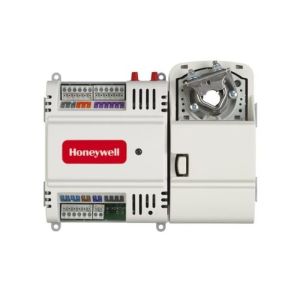

**Configurable BACnet VAV Controller with Actuator

Brand:Honeywell

MPN:CVB4022AS-VAV1

SKU:CVB4022AS-VAV1

List Price:

$972.00

Today's Price:

$505.44

product datasheet

product series specifications

Rated Voltage: 20-30 VAC, 50/60 Hz

Power Consumption: 100 VA for controller and all connected loads (including the actuator on the model)

Operating and Storage Temperature: -40 to 150 °F, -40 to 65.5 °C

Relative Humidity: 5% to 95% non-condensing

product series features

Free Topology Transceiver (FTT) high-speed 78 kilobit communications network
120 controllers per Q7751A,B Router when configured as a repeater
Easy user access to air flow sensor inputs
All wiring connections are made to removable terminal blocks to simplify controller installation and replacement
Both controller housing and actuator are UL plenum rated

more information & related documents

Series Description

The CUL6438SR-CV1, CVL4022AS-VAV1, and CVL4024NS-VAV1 controllers are part of the Stryker family. The controllers are Free Topology Transceiver (FTT) LONMARK certified devices designed to control HVAC equipment. These controllers provide many options and advanced system features that allow state-of-the-art commercial building control. Each controller is configurable using the NIAGARA FRAMEWORK software.

Kele Description

**Configurable BACnet VAV Controller with Actuator

Manufacturer

Honeywell
