FF2H

FF2H | Intermatic | Lighting Controls

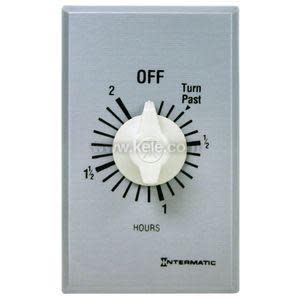

Spring Wound Countdown Timer - Commercial, 2 Hr 120-277 V SPST

Brand:Intermatic

MPN:FF2H

SKU:FF2H

List Price:

$146.00

Today's Price:

$75.92



Availability: 2 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet

product specifications

Range

0-2 Hours

Supply Voltage

120 VAC

Color

Metal

Mounting Location

Wall

product series specifications

    Supply Voltage:
  • 125/277VAC, 50/60Hz.
    :
  • Not Required to operate
    :
  • Spring return count down timer
    Operation:
  • Manually Twist past mark time
    :
  • On activation the contacts transfer from normal
    Contact Output :
  • SPST, 1-N.O. , SPDT or DPST 2-N.O.) per order
    Contact Current:
    :
  • Resistive 20A @125 VAC, 10A @277VAC
    :
  • Ballast Do not use with Ballasts
    :
  • Tungsten 7A Tungsten @125 VAC, (Compatable with CFL)
    :
  • FAN 1 Hp @125 VAC, 2 Hp @240 VAC
    Manual Override:
  • Hold on some models
    Special Functions:
  • Decorator and full plastic faceplate
    :
  • H model HOLD closed in the "ON" position
    Timers:
    :
  • FDxM 0-(5,15, 30, 60) minutes or
    :
  • FDxH 0-(2, 4, 6, 12) hours
    Operating Temperature:
  • -40‚Ñâto 104‚Ñâ (-40‚ÑÉ to 40‚ÑÉ
    Operating Humidity:
  • 5% to 95% Non-condensing
    Wiring Terminations:
  • Terminals, 12 AWG max
    Mounting:
  • Vertical Decorator, Single gang 2.5‚Ä=deep switch box (not included)
    Color:
  • Brushed metal with black letters
    Enclosure Rating:
  • NEMA 1
    Dimensions:
  • 1.6‚Ä=W x 2.79‚Ä=H x 1.2‚Ä=D
    :
  • (4.0 x 7.1 x 3.0 cm)
    :
  • Knob 0.75‚Ä=from faceplate
    Weight:
  • 0.4 lb. (0.18 Kg)
    Approvals:
  • CSA, UL File #E10694
    Warranty:
  • 1 year

product series features

  • Hold in.on in. option, disables the automatic shut-off timer
  • Rugged time dial plate
  • Commercial brushed metal (plastic construction)
  • Meets NEC and UL requirements
  • Time saving up front terminal connection
  • Press-on knob design
  • CFL, incandesent, and motor compatible

more information & related documents

Series Description

The FF Commercial Series auto-off timers are designed to replace any standard wall switch. This series of energy-efficient mechanical timers do not require electricity to operate. The commercial 'brushed metal' look (plastic construction) meets NEC requirements. In addition, they automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads.

Kele Description

2 HR 120-277 V SPST

Manufacturer

Intermatic

Related Documents

PDF - FD, FF Series Installation InstructionsFD, FF Series Installation Instructions
PDF - FF Commercial Series SpecificationsFF Commercial Series Specifications
