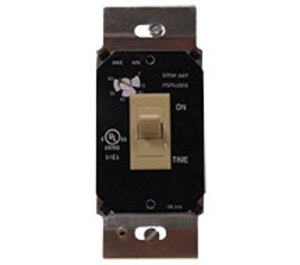

* product series image displayed
42702-1 | Capewell Aerial Systems | Lighting Controls
FAN/LIGHT, ELECTRONIC TIMER, 2 POS, WH/IV
Brand:Capewell Aerial Systems
MPN:42702-1
SKU:42702-1
List Price:
$85.09
Today's Price:
$44.25
Availability: Lead time > 15 days. See alternatives below or chat with Sales.
product specifications
Range
0 - 60 min
Color
White
Mounting Location
Wall
Supply Voltage (Nominal)
120 VAC
product series specifications
- Supply Voltage:
- 120 VAC, 60 Hz
- Operation:
- Push Button or lever to desired time
- :
- On activation the contacts transfer from normal
- Relay Output Configuration:
- SPST-N.O.
- Contact Current:
- :
- Model 425 1/3 HP; 500W Incandescent
- :
- (Do not use with fluorescent lamp ballasts or CFLs)
- :
- Model 427 1/6 HP; 500 watts incandescent/tungsten;
- :
- 200VA fluorescent ballasts
- Indicators:
- Model 427, 2-LEDs, ON/OFF/Time
- Timers:
- Timer or ON/OFF
- :
- Model 4250 3 positions, ON/OFF/Timer-1 to 60 minutes adjustable
- :
- Model 4251 2 positions, OFF/Timer-1 to 60 minutes adjustable
- :
- Model 427 2 button, ON/OFF/Timer-20, 40, 60 minutes
- Operating Temperature:
- -32° to 104‚Ñâ ( 0° to 40‚ÑÉ)
- Operating Humidity:
- 20% to 85% Non-condensing
- Wiring Terminations:
- 5-pig tail 6"wires, 14 AWG
- Mounting:
- Vertical, Switch plate not included
- Color:
- Ivory and White per order
- Enclosure Rating:
- ABS, UL94 5V-A, UL94V0
- Dimensions:
- :
- 42503/42507 4.12"H x 1.75"W x 1.5"D, (10.5 x 4.5 x 3.8)
- :
- 42513/42517 4"H X 1.75"W X 1.5"D, (10.2 x 4.5 x 3.8)
- :
- 42702-1 4.12"H x 1.75"W x 2"D, (10.5 x 4.5 x 5.0)
- Weight:
- 0.4 lb (0.181kg)
- Approvals:
- UL, cUL
- Warranty:
- 1 year
product series features
- Control of fan/light with one switch
- Solid state components for long life
- Single or multi-ganged installation
- 1 to 60 minute time delay setting
- Two position switch: On/Timed Off
- Three position switch: On/Off and Timed Off
- White or Ivory available
- Standard wall box mount
- Package includes installation hardware
- Wall Plate not included
more information & related documents
Series Description
The Marktme 42000 Series in-wall timers are perfect for automatic shut-off control of ventilation in high humidity areas, bath fans and whole house fans. For high humidity areas; switch turns ON a light and fan simultaneously. Turn light OFF, fan remains ON for a preset time.
Kele Description
FAN/LIGHT, ELECTRONIC TIMER, 2 POS, WH/IV
Manufacturer
Capewell Aerial Systems
42000 Series Timer Instructions x
