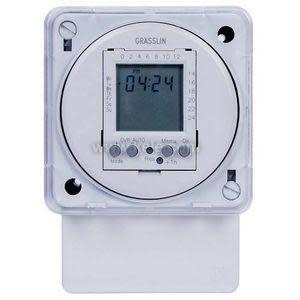

FM1D20A-24 | Intermatic | Lighting Controls
Time Clock 24H/7-Day, SFM, 1 Ch, 24 Vac
Brand:Intermatic
MPN:FM1D20A-24
SKU:FM1D20A-24
List Price:
$-.--
Today's Price:
$-.--
product specifications
Range
1 Channel
Supply Voltage
24 VAC
Mounting Location
DIN Rail
product series specifications
- Supply Voltage:
- 24 VAC @ 4 VA 50/60 Hz; 24 VDC @ 166.6 mA, 120VAC, or 240 VAC
- Operation:
- 4 buttons w/ menu display
- Relay Output Configuration:
- Dry Contact, Maintain operation
- :
- FM1 1 Circuit, SPDT
- :
- FM2 2 Circuit Individually controlled, Dual SPDT
- Contact Current:
- Circuit 1 and 2
- :
- Resistive (NC) 16A @ 277 VAC
- :
- Ballast (NO) 8A @ 240 VAC, 12A @120 VAC
- :
- Tungsten (NO) 1000W @ 240 VAC, 600W @120 VAC
- :
- FAN (NO) 1/2 hp, 120 VAC; 1 hp, 240 VAC;
- :
- (NC) 360 VA @ 120 VAC
- Manual Override:
- 2- push buttons (one for each circuit)
- Clock:
- 12/24 hour clock
- :
- with 24 hour/7 day programming
- Clock Accuracy:
- ±4 minutes per year
- Special Functions:
- Day light Saving Time (DST)
- Battery Backup:
- 3 year battery life (Non-Replaceable)
- Schedules:
- 20 event or 50 event per order
- Holidays:
- 8th day, No Holiday per say
- Schedule Transfer:
- None
- Display:
- 4 line LCD display, w/clear dust cover
- Local Set-up & Control:
- 6-Push Buttons for menu manipulation
- Operating Temperature:
- –14℉ to 131℉ (–10℃ to 55℃)
- Operating Humidity:
- 0% to 95% Non-condensing
- Wiring Terminations:
- 5 or 8 Screw terminals, 10 AWG
- Mounting:
- Surface/DIN rail/Flush, (Product specific)
- Enclosure Rating:
- NEMA 3R, Plastic with terminal cover
- Dimensions:
- :
- FM1 2.4‚Ä=H x 2.4‚Ä=W x 2.3‚Ä=D, (6.0 x 6.0 x 5.8 cm)
- :
- FM2 4‚Ä=H x 2.8‚Ä=W x 2.3‚Ä=D, (10.2 x 7.2 x 5.8 cm)
- Weight:
- 0.5 lb ( 0.23 Kg)
- Approvals:
- UL File #E10694, CE
- Warranty:
- 1 year
product series features
- 24-hour or 7-day programming
- 50 programs and 20 program models
- 24 VAC or 120 VAC models
- Automatic daylight savings time (DST) changeover
- Large LCD display of day, time, and load status
- Manual override of each circuit
- Eighth-day holiday programming
more information & related documents
Series Description
The FM1D50 Series Electronic Time Clocks are compact time controls providing 24-hour or 7-day time-based switching of HVAC control circuits, lighting or machinery. The time controllers are ideal for building automation systems, BAS, and HVAC applications. The FM1D50 is a single-circuit time controller. The FM2D50 provides two-circuit time control. They utilize heavy-duty, 16A, SPDT relay contacts suitable for low voltage loads or line voltage loads.
Kele Description
TIME CLOCK 24H/7-DAY, SFM, 1 CH, 24 VAC
Manufacturer
Intermatic
