PW-100-24-W

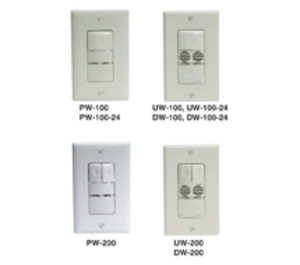

* product family image displayed

PW-100-24-W | Watt Stopper, Legrand | Lighting Controls

WHT, PASSIVE INFRARED, 1 SW, 24 VAC/VDC W/O PLATE

Manufacturer:Watt Stopper, Legrand

MPN:PW-100-24-W

SKU:PW-100-24-W

List Price:

175.00

Today's Price:

98.00



(login for better pricing)
USD
Availability: 31 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Supply Voltage

18-24 VDC, 35 mA 24 VAC ± 10% 35 mA 120 VAC ±10% 50/60 Hz 240/277± 10% VAC 50/60 Hz

Relay Type

24 volt models

SPDT

120 volt models

SPST

Contactor Ballast

800 watt @ 120 VAC, 1200 watt @ 277 VAC (120 volt models only)

Relay Output

1A @ 30 VDC/VAC (24 volt models only)

Coverage Pattern

PIR major motion 35' x 30' PIR minor motion 20' x 15' Ultrasonic major motion 20' x20' Ultrasonic minor motion 15' x15', PIR Major motion 35' x 30', minor motion 20' X 15', Ultrasonic Major motion 20' x 20' minor motion 15' x 15'

Sensitivity Adjustment

PIR (high/low), Ultrasonic (fully variable), PIR (high/low), Ultrasonic (fully variable)

Time Delay Adjust

SmartSet ™(automatic), fixed (5, 15 or 30 minutes), walk-through, testmode

Dimensions

2.73"L x 1.76"W x 1.83"D (6.9 x 4.5 x 4.7 cm)

Approvals

UL Listed, File E101196

Weight

0.41 lb (0.19 kg)

Warranty

5 years

product family features

  • Detection Signature Processing eliminates false triggers and provides immunity to RFI and EMI
  • Zero-crossing technology relay
  • Vandal resistant lens
  • Choice of Auto-ON or Manual-ON operation
  • SmartSet™ automatically adjusts time delay and sensitivity setting from occupants patterns
  • Selectable walk-through mode
  • Selectable test mode
  • Selectable audible and/or visual alerts
  • LED occupancy indication
  • Built-in light level sensing
  • Override mode

more information & related documents

Family Description

The PW Series Passive Infrared Sensor (PIR) features the finest PIR technology. These infrared sensors detect occupancy by responding to the difference between heat emitted from the human body in motion and the background space. UW Series Passive Ultrasonic Occupancy Sensors detect an occupant by transmitting ultrasonic sound waves throughout an area and measuring the speed at which they return. Occupant movement changes the frequency at which these sound waves return, resulting in a Doppler shift and occupancy detection. DW Series Dual Technology Occupancy Sensors combine the best of both PIR and ultrasonic sensor technologies. While PIR and ultrasonic provide optimal control for many spaces, some applications pose difficulty for single technology products. Dual technology sensors ensure maximum sensitivity and coverage in tough applications for optimal reliability and energy savings. Each of these sensors types are proven performers in building automation systems, BAS, and HVAC applications.

Kele Description

WHT, PASSIVE INFRARED, 1 SW, 24 VAC/VDC W/O PLATE

Manufacturer

Watt Stopper, Legrand
