HS-WPR-I | Watt Stopper Legrand | Lighting Controls
COVER PLATE 3 GANG BOX CARD SLOT ON RIGHT, IVORY
Brand:Watt Stopper Legrand
MPN:HS-WPR-I
SKU:HS-WPR-I
List Price:
$20.67
Today's Price:
$10.75
Log in for customized pricingproduct specifications
Type
Accessories
product series specifications
Tungsten: 120 VAC @ 800 W
Ballast: 120 VAC @ 600 W, 277 VAC @ 1200 W
CFL: 120 VAC @ 500 W
HP: 120 VAC @1/6HP
Switch Buttons: Momentary push-switch during card insertion
Egress Time Delay: 30 seconds
Status indication: Card slot is backlit
Operating Temperature: 32° to 131°F (0° to 55°C)
Operating Humidity: 20% to 95% non-condensing
Wiring Terminations: Push-in wire clips, 14 AWG to 12 AWG wire
Mounting: Typical vertical switch box, w/separately ordered cover plate
Color: White, ivory, almond, black, gray
Approvals: UL File #E101196
Warranty: 5 year
product series features
- HS-100 low voltage for BAS and lighting panels
- HS-150 high voltage for direct lighting control
- Attractive, low-profile styling
- Choice of five decorator colors
- Backlit card key slot provides visibility 30-second egress time delay
- Zero high voltage crossing for product longevity (HS-150)
- Uses the same card key that unlocks the door
- Compliant with IECC and ASHRAE/IESNA Standard 90.1
more information & related documents
Series Description

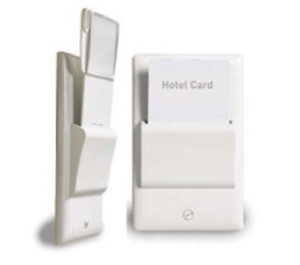

The Wattstopper HS Series Card Key Switch turns electrical circuits on or off when a card key or HS-FOB Key Fob is inserted or removed from its slot. The HS-100 is a low voltage unit with a normally open and normally closed isolated relay, allowing it to interface with a third party energy management and/or lighting management control system. Additionally, the HS-100 can connect to one or more Watt Stopper Power Packs. The HS-150 is a line voltage unit that serves as a master switch for a single guest room circuit.
Kele Description
COVER PLATE 3 GANG BOX CARD SLOT ON RIGHT, IVORY
Manufacturer
Watt Stopper Legrand
HS-100 Installation
