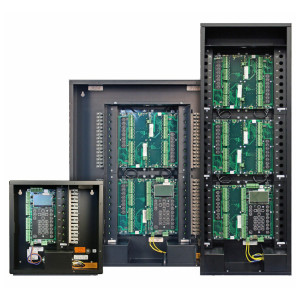

RT-16-1-U-B | PLC Multipoint | Lighting Controls
16 RELAY LIGHTING PANEL, NEMA 1, BACNET
Brand:PLC Multipoint
MPN:RT-16-1-U-B
SKU:RT-16-1-U-B
List Price:
$13,222.00
Today's Price:
$6,875.44
Log in for customized pricingproduct specifications
Communication Protocol
BACnet
Type
Relay Panel
Number of Relays
16
Mount
Wall
product series specifications
Electrical Control Power:
Primary: 120/277VAC, 50VA
Low Voltage: 24 VAC 1A
Switch Types:Low Voltage Switches
Switch Inputs:
Up to 48 dry contacts monitored by 24VDC
Single Momentary Pushbutton
Dual ON/OFF Momentary Pushbutton
Single RTC Momentary Toggle
Occupancy Sensor
Analog Outputs:0-10VDC
Communication:
RS-485
BACnet IP/MSTP
Ethernet
Mechanical Enclosure:NEMA 1
product series features
- Up to 48 relays per enclosure (increments of 8)
- Up to 24 Dimming Outputs for single enclosure (0 - 10V)
- Up to 16 CANbus digital switch stations
- Up to 48 inputs for switches, occ sensors and other dry-contact inputs
- 4 analog inputs for PLC Photosensor
- Multiple enclosure sizes and types available
- Pre-programmed control strategies
- PLC Designer Software Interface available
- Graphic interface with integral keypad
- Reliable 30A mechanically latching relays
- BACnet IP / MSTP
more information & related documents
Series Description
The Tandem is a simple, low-cost networkable lighting control panel that provides a superior alternative to traditional panels that use time clocks, twist timers and contactors. The Tandem provides automated control of line-voltage lighting circuits and low-voltage dimming circuits based on programmed groups, panel switches, photosensors and time schedules. Multiple panels can be networked to share common attributes across a site application.
Kele Description
16 RELAY LIGHTING PANEL, NEMA 1, BACNET
Manufacturer
PLC Multipoint
Related Documents
Tandem-Installation
