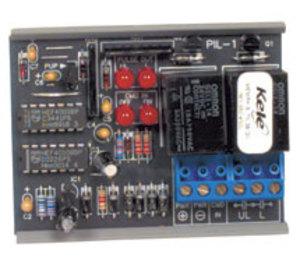

PIL-1-C | Kele | Lighting Controls

Supply Voltage:24 VAC @ 1.2 VA, 24 VDC @ 50 mA

Signal Input:Command, ≥CMD IN≥ 24 VAC/VDC (Reference to - pwr.)

Signal Output:Pulse output on 2-SPST contacts

Ref Power: 24 VAC or 120 VAC

L-Latch: 100 ms pulse for ≥CMD IN≥ ON

UL-Un-Latch: 100 ms pulse for ≥CMD IN≥ OFF

Pulse Duration:100ms STD., Factory add 0.1-5s max

Relay output:24/120 VAC @ 5A

Power UP default (PUP):Power start-up jumper (PUP)

PUP "Up": Auto Pulse ON during power start-up

PUP "Down": Auto Pulse OFF during power start-up

Visual Indication:Four Status LED's

Pulse Out (UL): Illuminates on "Unlatch" output relay

Pulse Out (L): Illuminates on "Latch" Ouput relay

CMD IN (Off): Illuminates on "Off" Input command

CMD IN (ON): Illuminates on "ON" Input command

Operating Temperature:14° to 122°F (-10° to 50°C)

Operating Humidity:5 to 95% RH non-condensing

Wiring Terminations:6-Terminals, 22 to 14 AWG

Mounting:Snap Track, (3.0 x 2.38") Included

Enclosure Rating:None (open design)

Dimensions:2.375"W x 3"L x 1.375"H (6.03 x 7.62 x 3.5 cm)

Weight:0.25 lb (0.12 Kg)

Warranty:1 year
