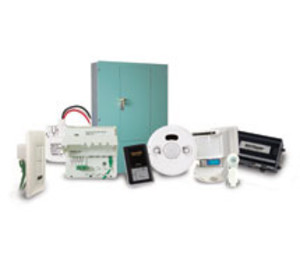

LMSW-102-W-P | Kele | Lighting Controls

Supply Voltage:

LMPL: 120 VAC, 50/60 Hz

LMRC: 120 VAC or 230 VAC or 277 VAC, 50/60 Hz

Auxiliary Supply Output:

LMPL-X01: 24 VDC @ 150 mA

LMRC-100: 24 VDC @ 150 mA (Adds 150mA to system network)

Lighting Relay Output Capacity: 4 CTRLs per local network (8-relay max)

LMPL-X01: Single or Dual Latching SPST (For recepticals)

LMRC-101: Single Latching SPST (For lights)

LMRC-102: Dual Latching SPST (For lights)

DI Hard Wire (HW) Inputs: LMIO-101 comm. module for DI/DO

Relay/Contactor: Latching (LMRC or LMPL)

Ballast: 20A @ 120/277 VAC

Tungsten:20A @ 120 VAC

Fan HP: 1HP @ 120/240 VAC

Relay termination: Pigtails 2/circuit on LMRC/LMPL

Relay override: Push button on LMRC/LMPL

Dimming Output Capacity: 4 CTRLs per local network (12-relays & 12 dimmers max)

LMRC211: 1 latching relay & 0-10V dimmer output

LMRC212: 2 (latching) relays & 2 (0-10V) dimmer outputs

LMRC213: 3 (latching) relays & 3 (0-10V) dimmer outputs

Display: LED on LMRC/LMPL relay

BAS Communication: BACnet MS/TP, w/(LMBC-300 network bridge)

Field Device Comm.: BACnet MS/TP, Free topology (Star or Daisy chain)

Input Devices: Modules use 5-20mA each (See module specs)

Output/CTLR Devices: Controllers provide network power for remote modules

LMRC-101, LMPL-101: Local network has up to 24 addresses, 4 CTRLs max, Up to 4 ON/OFF loads possible

LMRC-2xx, LMPL-201: Local network has up to 48 addresses, 4 CTRLs max, Up to 12 ON/OFF loads and 12 dimmers possible

LMBC or LMRC: Each segment talks with up to 127 "Local networks"

Configuration: LMCT-100 Prog. tool (Required on first install)

Special features: Completely distributed outputs and inputs over BACnet

Operating Temperature: Gen. Limits, 50° to 104°F (See module specs)

Operating Humidity: Gen. Limits, 5-90% RH non-condensing

Mounting: Hub, ceiling or wall mount (See module specs)

Enclosure Rating: NEMA 1, dry location

Approvals: BTL, FCC Part 15, ASHRAE 90.1, RoHS, IECC, EPAct, California Title 24

Warranty: 1 year
