CXR3L | Hubbell Electrical Products | Lighting Controls
CX RELAY 120/277 /347 VAC 30A/1P LATCHING
Brand:Hubbell Electrical Products
MPN:CXR3L
SKU:CXR3L
List Price:
$215.00
Today's Price:
$111.80
Log in for customized pricingproduct specifications
Type
Relay
Supply Voltage (Nominal)
120 VAC
product series specifications
Supply Voltage: Supplied w/multi-tap transformer
Auxiliary Supply Output:
Short Circuit Current (SCCR): Latching relay = 14K amps, Non-latching = 18K amps
Lighting Relay Output Capacity: 1-24 relays (per order)
DI Hard Wire (HW) Inputs: 4 wire (±24VDC, ±DI, & LED indication available)
DI HW for Photocell:
UI Hard Wire (HW) Inputs:
Relay/Contactor: SPST dry contact, N.O or N.C, Latching or Non-latching (per order)
Resistive Not specified
Ballast 120/277VAC @30A, 347VAC @20A
Tungsten 120VAC @20A
Fan HP 120VAC @1HP
Other Relay Specifications: See table 1 below
Relay Cycle Life: Not specified
Relay termination:
Relay override: Button w/ LED status and keyboard interface
Dimming Output Capacity: Special order
Display: 2.25" x 1.75" LCD w/button interface
Internal Clock: Astronomic w/64 Programmable schedules and DST
BAS Communication: None
Field Device Comm.: None
Configuration: Built in touch screen and SD card for transport
Special features: 32 Configurable groups and 99 scheduled holidays
Operating Temperature: 32°-112°F (0°-50°C)
Operating Humidity: 10% - 90% Non-condensing
Enclosure Mounting: Surface w/key hinged door
Enclosure Rating: NEMA 1
Dimensions:
Approvals: ETL, UL File E174097
Warranty: 2 years
product series features
- Four relay panel sizes 4, 8, 16, and 24 relay spaces
- Five types of relays 20A/1P and 20A/2P, NO, NC (14K SCCR) and 30A/P latching (18K SCCR)
- Door mounted LCD user interface with keypad
- 365 day programming with 64 schedules
- Astronomical and real time clock
- Selectable pre-programmed scenarios
- Programmable inputs accept low voltage switches, photocells, or motion sensors
- Two low voltage dry contact output relays on 8 relay panel
- Program uploads via removable SD memory card
more information & related documents
Series Description

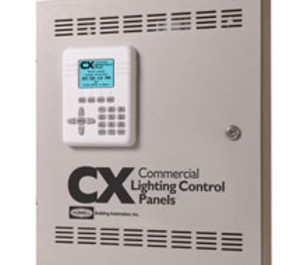

The Hubbell CX Series Commercial Lighting Control Panels provide cost-effective lighting control for maximum energy savings. The LCD user interface is located in the door and utilizes simple and intuitive scrolling menus to program, check status or update the panel. The easy to use Pre-Programmed Scenarios Menu makes project commissioning simple and fast. The CX panels can save up to 50% in labor and materials when used in place of conventional time clock and contactor combinations.
Kele Description
CX RELAY 120/277 /347 VAC 30A/1P LATCHING
Manufacturer
Hubbell Electrical Products
CX Master Secondary Panel Instructions
