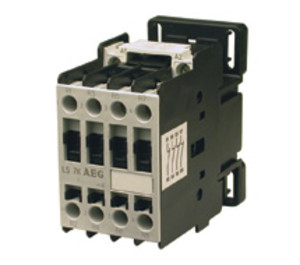

LS7K-40H | EE Controls | Lighting Controls
30 AMP 4 POLE NO 277 V LIGHTING CONTACTOR
Brand:EE Controls
MPN:LS7K-40H
SKU:LS7K-40H
product specifications
Type
Contactor
Supply Voltage (Nominal)
24 VAC
Mount
DIN rail
product series specifications
Supply Voltage: 24/120/277 VAC, Maintain to hold coil
Coil Current: VAC, 45 VA inrush, 6 VA Holding
Relay Type: Four SPST, electrically held, dry contacts
LS7K-04: Four SPST (N.C.)
LS7K-40: Four SPST (N.O.)
Ballast: 30 A @ 600 VAC
Tungsten: 20A at 277 VAC
Status Contact: 4th contact, 30A @ 600 VAC
Manual Override: None
Coil Ratings: Electrically held contactor
Energize: Greater than 80% of supply voltage
Drop-out: Less than 80% of supply voltage
Cycle Endurance: 15M cycles
Visual Indication: None
SCCR: Not specified
Operating Temperature: -13° to 131°F (-25° to 55°C)
Operating Humidity: 10% to 90% RH noncondensing
Wiring Terminations: 2 Control terminals - 14-10 AWG, Contacts- 8 Screw clamp for 14-10 AWG
Mounting: Surface or DIN rail
Dimensions: 1.8"W x 3.2"L x 3.35"H (4.5 x 8.1 x 8.5 cm)
Weight: 0.7 lb (0.3 Kg)
Approval: UL File #E76233, CE
Warranty: 1 year
product series features
- 4-pole style
- Normally closed (N.C.) or normally-open (N.O.)
- DIN or surface mounting
- Easy parts replacement
more information & related documents
Series Description
The LS7K Series lighting contactors are electrically held and are available in four-pole normally closed or normally open configurations. The 30 amp contacts are fully rated for general purpose and ballast lighting loads. The light contacts feature compact size and two mounting methods. Installation is easy, making them an ideal choice for building automation systems, BAS. Using the normally-closed light contacts may eliminate the need for more expensive latching contactors to keep lights on should the control circuit fail.
Kele Description
30 AMP 4 POLE NO 277V CONTACTOR
Manufacturer
EE Controls
