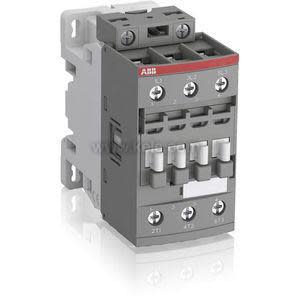

1SBN06300R1000 | ABB | Lighting Controls
4 Pole Contactor, NC, 24V 50/60 Hz
Brand:ABB
MPN:1SBN06300R1000
SKU:A16-04-00-81
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Type
Contactor
Supply Voltage (Nominal)
24 VAC
Mount
DIN rail
product series specifications
Frequency: 50/60 Hz
Coil Burden: 80 VA inrush, 8 VA Holding
Coil Voltage: 24, 120 or 277 VAC
Contact Type: Four (N.O. or N.C) Electrically held
Contactor Ballast: 30 A @ 600 VAC or General purpose
Contactor Tungsten: 20 A at 600 VAC
Wiring: 18-10 AWG copper stranded 75°C, max two wires per terminal
Mounting: Surface or DIN rail
Approvals: UL listed, File E312527, CSA File LR56745, CE, RoHS
Weight: 0.78 lb (0.35 kg)
Warranty: 1 year
product series features
- DIN rail or surface mounting
- Easy parts replacement
- Normally closed (N.C.) or normally open (N.O.) four-pole styles
more information & related documents
Series Description
The A16 Series Lighting Contactors are electrically-held 4 pole contactors available with normally closed or normally open contacts. The lighting contacts are rated for 30A general purpose and ballast, or 20A tungsten. The normally closed style keeps the lights on should the control circuit fail, making them ideal for building automation systems, BAS. Compact size and surface make installation easy. Version with DIN rail mounting available.
Kele Description
4 POLE CONTACTOR, NC, 24/50/60
Manufacturer
ABB
