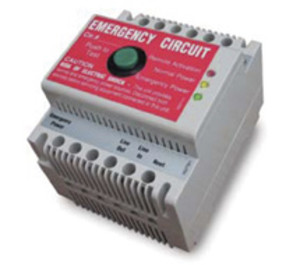

* product series image displayed

EMTS-100 | Watt Stopper Legrand | Lighting Controls

REMOTE TEST SWITCH, 24 VDC, NRMLY CLSD CNTCT

Brand:Watt Stopper Legrand

MPN:EMTS-100

SKU:EMTS-100

List Price:

$-.--

Today's Price:

$-.--

catalog page

product specifications

Type

Test Switch

Supply Voltage (Nominal)

24 VDC

Mount

Wall

product series specifications

Supply Voltage: 120/277 VAC, 60 Hz, xx VA

Auto voltage detect

Power Output: 24 VDC for Emergency contact DI

Contact Type: SPST-N.C., Zero crossover switching

Contact Rating:

Ballast 10A @ 120 VAC; 10A @ 277 VAC

Tungsten 2A @ 120 VAC maximum load

Fan HP 1HP @ 120 VAC maximum load

Status Contact: None

Manual Override: Push-to-test button on unit

Remote Activation:

"DI" for Emergency activation (Test, Fire Alm, Sec Alm)

"DI" for Norm/Emrgcy activation (Wall swch, Motion, Central light CTRL)

Coil Ratings:

Electrically held emergency contactor coil

Energize Greater than 80% of supply voltage (per order)

Drop-out Less than 80% of supply voltage (per order)

Cycle Endurance: 15M cycles

Visual Indication: 3-LEDs (Remote activation, Norm PWR, Emgcy PWR)

Short Circuit Current (SCCR): Not Specified

Operating Temperature: 32° to 122°C (0° to 50°C)

Operating Humidity: 5% to 95% RH noncondensing

Wiring Terminations: 8 terminals for 14 -10 AWG

Mounting: Surface or DIN rail

Enclosure Rating: NEMA 1, Fire rated V-0, 80°C

Dimensions: 2.78"H x 3.44"W x 2.63"D, (7.1 x 8.7 x 6.7 cm)

Weight: 1.0 lb (0.45 kg)

Approvals:UL 924 listed, file #E302768, Meets NFPA, OSHA, and NEC safety codes

Warranty: 5 years

product series features

Eliminates energy waste caused by in.always ON in. emergency lighting
Integral push-to-test button activates emergency mode for a true test condition
Connects to remote test switch or other input to activate emergency ON from a remote location
Operates as a control device or as a shunt
Senses local single circuit power failure
Zero-crossing switching relay technology
LED indication for emergency and normal power
Half-second delayed ON positively identifies emergency
Provides absolute fail-to-on emergency lighting

more information & related documents

Series Description

Watt Stopper/Legrand's emergency lighting control unit ELCU-100 is a self-contained, reliable, easy-to-install device. The ELCU provides all required functionality to allow any standard lighting control device to control emergency lighting in conjunction with normal lighting in any area within a building.

Kele Description

REMOTE TEST SWITCH, 24 VDC, NRMLY CLSD CNTCT

Manufacturer

Watt Stopper Legrand
