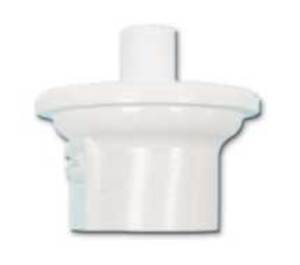

EDS | PLC Multipoint | Lighting Controls

Supply Voltage: 10 VDC (supplied by dimming ballast)

Sink Current: Up to 25 mA

Analog Output: 0 to 10 VDC Sinking to ballast, Compatible with T8 and T5 Electronic Dimming Ballast

Output Impedance: Up to 50 dimming ballasts

Sensor type: Blue-enhanced photo-diode

Accuracy:Overall: ±1% at 70°F (21°C)

Temperature: 1%, ±10%

Linearity: ±0.5%

Repeatability: ±12%

Range Adjust:

Setpoint range from 10 to 140 fc

Control type: Reverse Acting

Setpoint Adjust: 25 turn POT

Response Time Adjust:Standard: 20 seconds, 10 seconds if WHT-GRN wire is cut

Protective Lens: Clear Fresnel lens, 60° angle

Operating Temperature: -13° to 140°F (-25° to 60°C)

Operating Humidity: 10% to 95% Non-condensing

Wiring Terminations: 4, 18 AWG Pigtails

Signal Out: Violet (input PWR), Grey (Sinking signal)

Sensitivity Adj.: WHT to GRN= 20sec, Wht cut GRN= 10 sec

Mounting: Smooth back for ceiling down mounting w/double stick tape

Note: Do not face the lamps under control

Enclosure Rating: NEMA 1, Indoor

Dimensions: 1.23" H x 2" Dia. (3.12 x 5.08 cm), Lens = 1.29" Dia. (3.28 cm)

Approvals: NEC Class 2, California Title 24, RoHS, UL916

Warranty: 2 years
