ELCU-200

ELCU-200 | Watt Stopper, Legrand | Lighting Controls

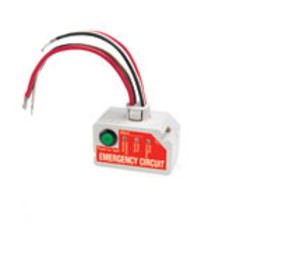

EMERGENCY UL924 BYPASS SHUNT RELAY

Manufacturer:Watt Stopper, Legrand

MPN:ELCU-200

SKU:ELCU-200

list price:

302.08

151.04



(login for better pricing)
USD

availability:Usually Ships in Less Than 6 Business Days

add to cart

arrow

product family specifications

Supply Voltage

120/277 VAC, 60 Hz, xx VA

Auto voltage detect

Power Output

24 VDC for Emergency contact DI

Contact Type

SPST-N.C., Zero crossover switching

Contact Rating

Ballast 20A @ 120 VAC; 20A @ 277 VAC

Tungsten 10A @ 120 VAC maximum load

Fan HP 1HP @ 120 VAC maximum load

Status Contact

None

Manual Override

Push-to-test button on unit

Remote Activation

DI" for Emergency activation (Test, Fire Alm, Sec Alm)

DI" for Norm/Emrgcy activation (Wall swch, Motion, Central light CTRL)

Coil Ratings

Electrically held emergency contactor coil

Energize Greater than 80% of supply voltage (per order)

Drop-out Less than 80% of supply voltage (per order)

Cycle Endurance

15M cycles

Visual Indication

3-LEDs (Remote activation, Norm PWR, Emgcy PWR)

Short Circuit Current (SCCR)

Not Specified

Operating Temperature

32° to 131℉ (0°to 55℃)

Operating Humidity

5% to 95% RH noncondensing

Wiring Terminations

6 pigtails 18 AWG and 2 pigtails 12 AWG

Mounting

Threaded Hub mount for 1/2″ knockout

Enclosure Rating

NEMA 1, Fire rated V-0, 80℃

Dimensions

1.7″H x 2.97″W x 1.64″D, (4.3 x 7.5 x 4.1 cm)

Weight

0.44 lb (0.2 kg)

Approvals

cUL, UL 924 listed, file #E302768, UL 2043 plenum rated

Meets NFPA, OSHA, and NEC safety codes

Warranty

5 years

product family features

  • Eliminates energy waste caused by emergency lighting that is always on
  • Integral push-to-test button activates emergency mode for a true test condition
  • Connects to EMTS-100 Remote Test Switch or other input to activate emergency on from a remote location
  • Operates as a control device or as a shunt
  • Senses local single circuit power failure
  • Zero cross switching technology for reliability and increased product life
  • Compatible with WattStopper occupancy sensors, daylighting controls, lighting control panels, and dimmers
  • LED indication for emergency and normal power
  • Half-second delayed on positively identifies emergency fixtures for required maintenance
  • Provides absolute fail-to-on emergency lighting
  • Qualifies for use on ARRA-funded projects

more information & related documents

Family Description

The Wattstopper ELCU-200 emergency lighting control unit is a self-contained device that allows any standard lighting control device to control emergency lighting in conjunction with normal lighting in any area within a building. If power is lost for any reason, including the tripping of a single branch circuit breaker, the ELCU-200 will force on the emergency fixtures for that area. The ELCU-200 can be wired either as a control device, so that emergency lighting follows the control of normal lighting, or as a bypass device to shunt emergency power around a control device (e.g., a dimmer) when normal power fails.
