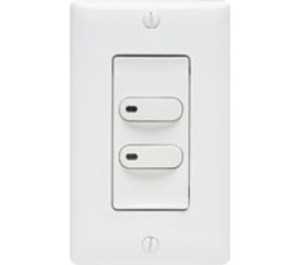

* product series image displayed
LVSM4NPWH | Hubbell Electrical Products | Lighting Controls
LVSWITCH, MOM, 4 BUTTON, NO PILOT, WHITE
Brand:Hubbell Electrical Products
MPN:LVSM4NPWH
SKU:LVSM4NPWH
List Price:
$320.00
Today's Price:
$166.40
Availability: Lead time > 15 days. See alternatives below or chat with Sales.
product specifications
Supply Voltage
24 VDC
Type
4 Switch
Color
White
Mounting Location
Wall
product series specifications
- Supply Voltage:
- None Required
- Switch Rating:
- SPST N.O., 30 VDC Max @100 mA per switch
- Switch Buttons:
- 1-4 Momentary push buttons
- Status indication:
- Optional 1-4 Green LED, 18-30VDC (Externally powered)
- Operating Temperature:
- 32° to 122‚Ñâ (0° to 50‚ÑÉ)
- Operating Humidity:
- 10% to 90% non-condensing
- Wiring Terminations:
- Switch, 6‚Ä=, 24 AWG Pigtails
- Wire Interconnection:
- Opt. LED, independent 6‚Ä=, 24 AWG Pigtails
- Mounting:
- Typical virtical switch box, w/wo opt. plate (P)
- Color:
- White (WH) or Ivory (IV)
- Enclosure Rating:
- NEMA 1
- Dimensions:
- STD. DecoraÆ,
- :
- ‚Ä=P‚Ä= Option with Opt. Plate = 2.78‚Ä=W x 4.5‚Ä=H
- Weight:
- 0.19 lb (0.09 Kg)
- Approvals:
- Title 24 compliant, RoHs
- Warranty:
- 5 year
product series features
- Momentary operation
- Latching versions available
- 1-4 buttons with or without LED
- Mounts to standard single-gang box
more information & related documents
Series Description
The Hubbell LV Series low voltage wall switches are designed for virtually any area. Switches are momentary when pressed and feature single or multiple button configurations with and without a pilot LED.
Kele Description
LVSWITCH, MOM, 4 BUTTON, NO PILOT, WHITE
Manufacturer
Hubbell Electrical Products
