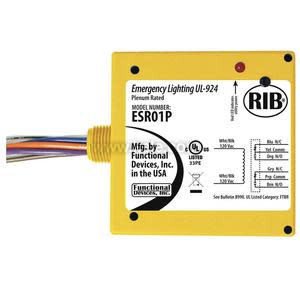

ESR01P | Functional Devices | Lighting Controls

Supply Voltage:

24 VAC/VDC, 120 VAC, 208-277 VAC, (See ordering Table)

2-17 VA depending on unit, 50/60 Hz

Contact Type: SPST-N.C., SPDT or SPDT (See ordering Table)

Contact Rating: (See ordering Table)

Status Contact: None

Manual Override: Yes, on some units (See ordering Table)

Coil Ratings: Electrically held emergency coil, See ordering for mA

Energize Greater than 80% of supply voltage (per order), Drop-out Less than 30% of supply voltage (per order)

Cycle Endurance: 10M cycles

Visual Indication: Relay status LED, on = activated

Short Circuit Current (SCCR): 5,000A

Operating Temperature: -30° to 140°F (-34° to 60°C)

Operating Humidity: 5% to 95% RH non-condensing

Wiring Terminations: Pigtails, 16", 18 AWG for coils, 12 AWG for 20A contacts, Terminals, 24 to 12 AWG

Mounting: Threaded Hub mount for 1/2" knockout

Enclosure Rating: NEMA 1, Plenum Rated UL94-5V

Dimensions:

Size A 2.3"H x 3.2"W x 1.8"D (5.8 x 8.1 x 4.6 cm)

Size B 4"H x 4"W x 1.8"D (10.2 x 10.2 x 4.6 cm)

Size J 1.7"H x 2.8"W x 1.5"D (4.3 x 7.1 x 3.8 cm)

Size M 1.6"H x 4"W x 1.8"D (4.1 x 10.2 x 4.6 cm)

Size N 1.7"H x 2.8"W x 1.80"D (4.3 x 7.1 x 4.6 cm)

Size O 1.3"H x 4"W x 1.80"D (3.3 x10.2 x 4.6 cm)

Weight: (See ordering table)

Approvals: UL Listed, UL924, C-UL, CE

Warranty: 5 years
