LU27-01-B | Flowline | Level

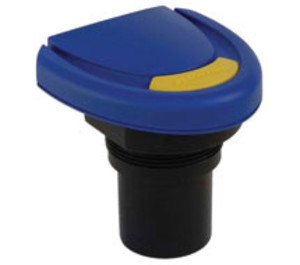

ULTRASONIC LEVEL TRANSMITTER W/ FOB 9.8 FT W/ BRKT
Brand:Flowline
MPN:LU27-01-B
SKU:LU27-01-B
List Price:
$1,814.00
Today's Price:
$943.28
product specifications
Range
30 psi
Supply Voltage
24 VDC
Type
Ultrasonic Level Transmitter
Cable Length
10 ft
Sensing Type
Ultrasonic
product series specifications
- Supply Voltage:
- 24 VDC @ 20.8 mA
- Accuracy:
- ±0.2% of span in air
- Signal Output:
- 4-20 mA @ 500Ω two-wire
- Measurement Range:
- LU23 :
- 8" to 18.0' (20 cm to 5.5 m)
- LU27 :
- 4" to 9.8' (10 cm to 3.0 m)
- LU28 :
- 8" to 26.2' (20 cm to 8.0 m)
- LU29:
- 8" to 32.8' (20cm to 10 m)
- Memory:
- Non-volatile
- Deadband:
- LU23:
- 8‚Ä= (20 cm) from sensor
- LU27:
- 4" (10 cm) from sensor
- LU28/29:
- 8" (20 cm) from sensor
- Operating Pressure:
- 30 psig (206.9 kPa)
- Process Temperature:
- -4° to 140‚Ñâ (-20° to 60‚ÑÉ)
- Beam Width:
- LU23:
- 3‚Ä= (7.6 cm)
- LU27:
- 2" (5.1 cm)
- LU28/29:
- 3" (7.6 cm)
- Fail Safe:
- Selectable: 4 mA, 20 mA, 21 mA, 22 mA, or hold last signal
- Resolution:
- LU27:
- 0.019" (0.5 mm)
- LU28/29:
- 0.079" (2.0 mm)
- Process Connection:
- LU23:
- 2‚Ä= NPT
- LU27:
- 1" NPT
- LU28/29:
- 2" NPT
- Cable Length:
- 10' (3m) length
- Operating Temperature:
- -31° to 140°F (-35° to 60°C)
- Enclosure Rating:
- NEMA 6P (UL 50 Type 6P) Polycarbonate
- Dimensions:
- 2.9"H x 4.1"W x 4.1"D (7.4 x 10.5 x 10.5 cm)
- Weight:
- w/o bracket:
- 1.5 lb (0.7 Kg)
- w/ bracket:
- 2.1 lb (0.95 Kg)
- Approvals:
- CE, FM, RoHS
- Warranty:
- 1 year
product series features
- 9.8ft, 26.2ft, 32.8ft (3.0, 8.0, or 10m) ranges available
- Simple configuration
- Polycarbonate enclosure designed to be corrosion resistant and submersible
- Minimal deadband to top of water optimizes filling capacity
- Adjustable loop failsafe (hi, low, last value)
- 2 in (5.1 cm) beam diameter for applications with restricted space
- Calibration protected w/FOB key
more information & related documents
Series Description
The LU2 Series Ultrasonic Level Transmitter provides non-contact liquid level measurement with a reversible 4-20 mA output. These ultrasonic level transmitters are available in three measurement ranges from 8.2 ft to 32.8 ft (2.5 to 10m), and an accuracy of ±0.2%. The water level sensor with transmitter is ideal for ultrapure, corrosive, waste, and slurry applications. Designed for use in Building Automation Systems, BAS, and HVAC applications, the level transmitter can be quickly configured using WebCal software. The software offers pre-programmed menus, tank set point graphics, and custom wiring diagrams. User can define loop failsafe, start-up condition, output at empty, and specific tank levels.
Kele Description
ULTRASONIC LEVEL TRANSMITTER W/ FOB 9.8 FT W/ BRKT
Manufacturer
Flowline
