LM52-1880 | Flowline | Level

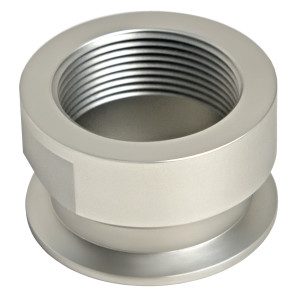

ADAPTER, 2IN TRI-CLAMP TO 1 1/2IN NPT

Brand:Flowline

MPN:LM52-1880

SKU:LM52-1880

List Price:

$327.00

Today's Price:

$170.04

product datasheet

Lead time of 14 days. Chat with Kele experts now

product specifications

Accessory Type

Adapter

Type

Accessory

product series specifications

Maximum range: Liquid: 98.4' (30m) with media dielectric ≥ 20 and no agitation; Solids: 49.2' (15m)

with media dielectric ≥ 6 and no dust

Frequency: 80 GHz., W-band, FMCW

Accuracy: 0.4m to 30m: ± 2mm; 0.00m to 0.39m: ± 10mm

Min. Dielectric: ≥ 1.6

Bluetooth Range: 26.2' (8m)

Signal Output: 4-20 mA, two-wire, HART 7 or Modbus, RS485, 9600 baud

Max. Signal Dist.: NPT thread: 1/2" NPT; G thread: M20

Supply Voltage: 4-20 mA: 12-30 VDC; Modbus: 9-27 VDC;

Max. Consumption: 4-20 mA: 22.5 mA; Modbus: 1.5 watt

Process Temp.: F: -40° to 176°, C: -40° to 100°.

Temp. Comp.: Automatic

Storage Temp.: F: -40° to 176°, C: -40° to 80°

Pressure: -14.5 to 43.5 psi (-1 to 3 bar)

Enclosure Rating: NEMA 4X (IP66/67)

Conduit Connect.: NPT thread: ½" NPT; G thread: M20

product series features

80 GHz technology provides reliable, maintenance-free operation.
Measures level height, air gap, tank volume or open channel flow.
Rugged PVDF antenna and PBT-FR enclosure for corrosive media.
IP66/67 enclosure for outdoor installations exposed in all weather.
LCD push button display for level or flow indication and adjustment.
Zero dead band maximizes the potential fill capacity of small tanks.
Optionally measures through top wall of plastic or fiberglass tanks.
Configuration via LevelTapTM App, LCD display, HART or Modbus.
Low 9V or 12V operation is ideal for battery powered systems.

more information & related documents

Series Description

The LR83 general purpose 80 GHz radar level sensor transmitter provides continuous level measurement up to 98.4’ (30m) for liquids or 49.2’ (15m) for solids, with a 4-20 mA with HART or Modbus signal output. The level sensor transmitter is wirelessly configured over Bluetooth via our LevelTapTM App which enables you to see the level, verify the status, and manage the settings of connected level sensor transmitters from the safety of the ground or nearby catwalk. The level sensor transmitter measures liquid and solids media with a dielectric constant value ≥ 1.6, such as water, chemical or petroleum-based liquids, and pellet, grain, powder, or aggregate solids. Select this sensor for tank, sump, weir, canal, reservoir, silo, bin, conveyor, or stockpile applications.

Kele Description

ADAPTER, 2IN TRI-CLAMP TO 1 1/2IN NPT

Manufacturer

Flowline
