SBLT2-10-40

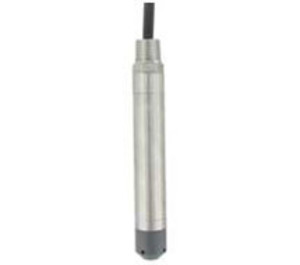

* product series image displayed

SBLT2-10-40 | Dwyer Instruments | Level

SUBMERSIBLE LEVEL XMITTER

Brand:Dwyer Instruments

MPN:SBLT2-10-40

SKU:SBLT2-10-40

List Price:

$1,180.00

Today's Price:

$613.60



Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Range

10 psi

Supply Voltage

13-30 VDC

Type

Submersible Level Transmitter

Cable Length

40 ft

Sensing Type

Pressure

product series specifications

    Supply Voltage:
  • 13-30 VDC
    Signal Output:
  • 4-20 mA @ 850‚Ѷ (loop powered)
    Accuracy:
  • ±0.25% of full scale
    Response Time:
  • 50 ms
    Operating Temperature:
  • 0° to 150‚Ñâ (-18° to 60‚ÑÉ)
    Wetted Materials:
  • 316 SS, 316L SS, epoxy adhesive; Cable: Polyether polyurethane or ETFE; Bullet Nose: PVC
    Mounting Orientation:
  • Suspended in a tank below level being measured
    Electrical Protection:
  • Lightning and surge protection
    Compensated Temperature Range:
  • 0° to 140‚Ñâ (-18° to 60‚ÑÉ)
    Connections:
  • Wire pigtail
    Media Compatibility:
  • Compatible liquids
    Pressure Range:
  • 2X full scale
    Thermal Effect:
  • Less than ±0.02%/‚Ñâ
    Operating Temperature:
  • 0° to 150‚Ñâ (-18° to 60‚ÑÉ)
    Dimensions:
  • 1.0‚Ä=W x 6.9‚Ä=H x 1.0‚Ä=D (2.5 x 17.6 x 2.5 cm)
    Approvals:
  • CE
    Weight:
  • 2.2 lb (1.0 Kg)
    Warranty:
  • 1 year

product series features

  • Lightning and surge protection
  • Maintenance free vent filter
  • Slim design for tight applications
  • Submersible

more information & related documents

Series Description

The Dwyer SBLT2 Series submersible level transmitters are manufactured for years of trouble free service in the harshest applications. It measures the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing. Bullet nose design protects the diaphragm from damage. Units come equipped with a 270-pound tensile strength shielded and vented cable. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer.

Kele Description

SUBMERSIBLE LEVEL XMITTER

Manufacturer

Dwyer Instruments

Related Documents

PDF - SBLT2 Series Installation and Operating InstructionsSBLT2 Series Installation and Operating Instructions
PDF - SBLT2 Series Product DrawingSBLT2 Series Product Drawing
