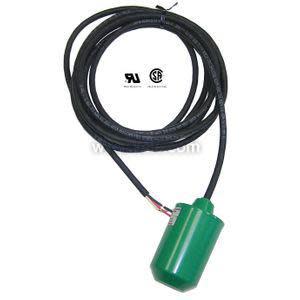

Green cylindrical float attached to a long black cable with exposed wires.

NG2DW1500B | Mercury Displacement | Level

Mechanical Float Switch

Brand:Mercury Displacement

MPN:NG2DW1500B

SKU:NG2DW1500B

List Price:

$112.00

Today's Price:

$58.24

product datasheet

installation instructions

catalog page

product specifications

Cable Length

15 ft

Type

Float Level Switch

Display

Supply Voltage (Nominal)

120 VAC,240 VAC

Sensing Type

Mechanical

product series specifications

Relay Type: SPDT

Relay Rating: 10 A 120/240 VAC, 1/4 hp 120/240 VAC

Wetted Materials: ABS plastic

Operation Angle: 25 degrees above, 10 degrees below horizontal

Wiring:

Tank full: Black-red closed

Tank empty: Black-white closed

Cable Length: 15' (4.6 m)

Cable Type: 16 AWG 3 conductors CPE jacketed

Operating Temperature: 140°F (60°C) maximum

Dimensions: 4.6" H x 2.6" diameter (11.7 x 6.6 cm)

Weight: 1.65 lb (0.7 Kg)

Approvals: CSA

Warranty: 1 year

product series features

SPDT mechanical switch
10A contacts rated for 1/4 hp
Float suitable for sewage and high temperature
CPE-jacketed 15 ft (4.6m) cord
Extra cord weight available

more information & related documents

Series Description

The Model NG2DW1500B Mechanical Float Switch is an economical choice for building automation and HVAC applications. These float switches can be installed by tie-wrapping them to support structures or by adding external weights to the cables. The switch is ultrasonically welded and potted for a complete seal. SPDT contacts are included so the unit can be used to empty or fill a tank or sump.

Kele Description

MECHANICAL FLOAT SWITCH

Manufacturer

Mercury Displacement
