FS7-SS

FS7-SS | Kele | Level

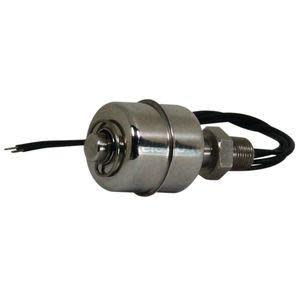

Stainless Steel Float Switch

Brand:Kele

MPN:FS7-SS

SKU:FS7-SS

List Price:

$141.84

Today's Price:

$73.76



Availability: 1,264 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Range

11 in

Supply Voltage

120/240 VAC

Type

Float Level Switch

Display

No

Cable Length

11 in

product series specifications

    Specific Gravity:
  • 0.70
    Operating Temperature:
    FS7-BN:
  • -4° to 176‚Ñâ (-20° to 80‚ÑÉ)
    FS7-SS:
  • -4° to 248‚Ñâ (-20° to 120‚ÑÉ)
    Wetted Materials:
    FS7-BN:
  • Polysulfone/Buna-N
    FS7-SS:
  • 316 Stainless/316 Stainless
    Mounting Orientation:
  • Vertical
    Process Connection:
  • 1/8" NPT
    Dimensions:
    FS7-BN:
  • 2.0" L x 1.0" diameter
    FS7-SS:
  • 2.2" L x 1.1" diameter
    Approvals:
  • UR
    Weight:
    FS7-BN:
  • 0.6 oz (18 g)
    FS7-SS:
  • 1.0 oz (28g)
    Warranty:
  • 1 Year

product series features

  • Low cost
  • 50 W SPST switch operation (120-240 VAC)
  • Easy installation
  • Vertical mounting
  • UL File E161587
  • One year warranty

more information & related documents

Series Description

The Kele FS7 Series float level switch provides an economic solution to monitoring the most common liquid levels applications in tanks and other vessels. Magnets within the float actuate the sealed reed switch on rising or falling levels. These switches are mounted in the vertical position and are shipped in the normally open position. For the FS7-SS the switch action can easily be reversed (normally closed position) by removing the float, rotating it 180 degrees (end-to-end), and replacing the float on the stem.

Kele Description

FLOAT SWITCH

Manufacturer

Kele
