UG01-0001-41

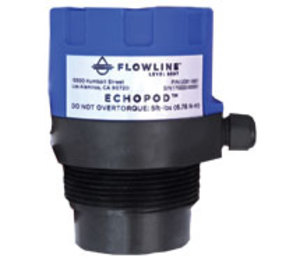

* product series image displayed

UG01-0001-41 | Flowline | Level

REFLECT ULTRASONIC LEVEL TRANS 4.9' 4 SPST W/FOB

Brand:Flowline

MPN:UG01-0001-41

SKU:UG01-0001-41

List Price:

$1,311.11

Today's Price:

$681.78



Availability: 3 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Range

30 psi

Supply Voltage

14-28 VDC

Type

Ultrasonic Level Transmitter

Cable Length

48 in

Sensing Type

Ultrasonic

product series specifications

    Range :
    UG01 :
  • 1.5‚Ä= to 4.9' (3.8cm to 1.5m)
    UG03 :
  • 4‚Ä= to 9.8' (10.1cm to 3m)
    Accuracy :
    UG01:
  • 0.125‚Ä= (3mm)
    UG03 :
  • ±0.2% of range
    Resolution :
    UG01 :
  • 0.019‚Ä= (0.5mm)
    UG03 :
  • 0.039‚Ä= (1mm)
    Dead Band :
    UG01 :
  • 1.5‚Ä= (3.8cm)
    UG03 :
  • 4‚Ä= (10.1cm)
    Beam Width :
  • 2‚Ä= (5cm)
    Configuration :
  • WebCalÆ PC WindowsÆ USBÆ 2.0
    Memory :
  • Non-volatile
    Supply Voltage :
  • 14-28 VDC
    Maximum Consumption :
  • 0.5W
    Loop Resistance :
  • 500‚Ѷ @ 24 VDC
    Signal Output :
  • 4-20mA, two-wire
    Signal Invert :
  • 4-20mA or 20-4mA
    Signal Fail-Safe :
  • 4mA, 20mA, 21mA, 22mA, hold last
    Contact Type :
  • (4) SPST relays
    Contact Rating :
  • 60 VA, 1A maximum
    Contact Fail-Safe :
  • Open, closed, hold last
    Contact Hysteresis :
  • Selectable
    Process Temperature -40° to 176‚Ñâ, -40° to 80‚ÑÉ :
    Temperature Comp :
  • Automatic
    Ambient Temperature -31° to 140‚Ñâ, -35° to 6‚ÑÉ0:
    Pressure :
  • 30 psi (2 bar)
    Enclosure Rating :
  • Type 6P (IP68)
    Encclosure Material :
  • Polypropylene
    Transducer Type :
  • Reflective
    Transducer Mat :
  • Polyvinylidene fluoride
    Cable Jacket Mat :
  • Polyurethane
    Cable Type :
  • 9-conductor, shielded
    Cable Length :
  • 48‚Ä= (1.2m)
    Process Mount :
  • -0001: 2‚Ä= NPT, -0011: 2‚Ä= G
    Mount Gasket :
  • -0001: N/a, -0011: VitonÆ
    Classification :
  • General purpose
    Approvals :
  • UL 61010-1
    Compliance :
  • CE, RoHS, C CSA US

product series features

  • Offered in 1.5m (4.9ft) and 3m (9.8ft) measurement ranges
  • Fail-safe diagnostics with selectable relay and signal outputs
  • Narrow 2 in (5cm) beam width for applications with limited space
  • Corrosion resistant PVDF transducer and compact PP enclosure
  • Short 1.5 in (3.8cm) dead band maximizes tank filling capacity
  • Automatic temperature compensation from -40 degrees to 80 degrees C
  • Four programmable relays with embedded level control logic
  • 1 pump or valve with 3 alarms
  • 2 pumps lead-lag with 2 alarms
  • 2 pumps duplexing with 2 alarms
  • 4 independent switch point alarms

more information & related documents

Series Description

The Flowline EchoPod® UG01 & UG03 Reflective Ultrasonic Multi-Function Liquid Level Transmitter Series provides continuous level measurement up to 9.8 ft (3m) with a 4-20 mA analog signal output and four relays, and is configured via our WebCal software. The non-contact liquid level sensor features our proprietary Reflective Technology™ that delivers reliable level measurement in condensing environments. Each relay can be configured for alarm, automatic fill or empty functions. Select this sensor for small tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil. Typical applications include day tank, IBC or drum, cooling tower, skid or machine, process tank and waste sumps. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

REFLECT ULTRASONIC LEVEL TRANS 4.9' 4 SPST W/FOB
