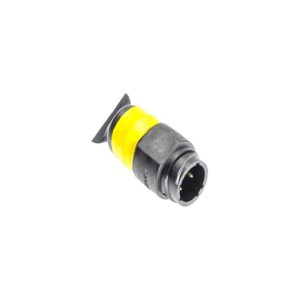

ANALOG MODULAR CIRCUIT END TERMINATION PLUG FOR SENSE CABLE

Brand:TTK USA

MPN:FG-TMX

SKU:FG-TMX

List Price:

$186.67

Today's Price:

$97.07

product datasheet

product specifications

Type

End Termination Plug

product series specifications

Operating Temperature: FG-AC, FG-ACS, and FG-ACX: -40F to 140F

Maximum Operating Temperature: FG-EC: 149F, FG-ECS & FG-ECX: 185F

Sense Cable Diameter: 0.295 IN, 7.5 MM

Minimum Bend Radius: 0.787 IN, 20 MM

product series features

Detects the leak of acids, corrosive chemical liquids, and water along the length of the cable
Detects leaks when connected to the Locating & Non-locating Alarm Units
Detects any break or cut to the cable
Non-absorbant design can be reset and reused after removal of leak

more information & related documents

Series Description

The TTK Analog and Addressable Sense Cables detect and pin-point the location of acids, corrosive chemical liquids, and water at any point along its length. The sense cables are installed in critical areas in order to provide permanent protection to limit the financial consequences of an undetected water and acid leak. The typical applications are in laboratories, fab plants, semi-conductor plants, cleanrooms, etc. TTK Leak Detection Systems offer a full range of connection accessories and kits as diversion boxes, leading cables, and end terminations. These items assure a proper functioning of the systems.

Kele Description

ANALOG MODULAR CIRCUIT END TERMINATION PLUG FOR SENSE CABLE

Manufacturer

TTK USA
