FG-ECS15 | TTK USA | Leak

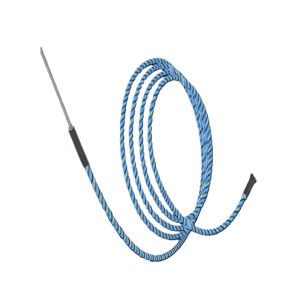

ANALOG AND DIGITAL WATER SENSE CABLE 49FT WITH 11FT LEADER CABLE
Brand:TTK USA
MPN:FG-ECS15
SKU:FG-ECS15
List Price:
$960.00
Today's Price:
$499.20
Log in for customized pricingproduct specifications
Color
Dark Blue
Type
Sense Cable
Display
No
Application
Fluid Leak Detection
product series specifications
Operating Temperature: FG-AC, FG-ACS, and FG-ACX: -40F to 140F
Maximum Operating Temperature: FG-EC: 149F, FG-ECS & FG-ECX: 185F
Sense Cable Diameter: 0.295 IN, 7.5 MM
Minimum Bend Radius: 0.787 IN, 20 MM
product series features
- Detects the leak of acids, corrosive chemical liquids, and water along the length of the cable
- Detects leaks when connected to the Locating & Non-locating Alarm Units
- Detects any break or cut to the cable
- Non-absorbant design can be reset and reused after removal of leak
more information & related documents
Series Description
The TTK Analog and Addressable Sense Cables detect and pin-point the location of acids, corrosive chemical liquids, and water at any point along its length. The sense cables are installed in critical areas in order to provide permanent protection to limit the financial consequences of an undetected water and acid leak. The typical applications are in laboratories, fab plants, semi-conductor plants, cleanrooms, etc. TTK Leak Detection Systems offer a full range of connection accessories and kits as diversion boxes, leading cables, and end terminations. These items assure a proper functioning of the systems.
Kele Description
ANALOG AND DIGITAL WATER SENSE CABLE 49FT WITH 11FT LEADER CABLE
Manufacturer
TTK USA
Related Documents
FG-Accessories TTK
