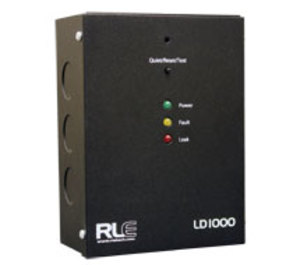

LD1000 | RLE Technologies | Leak
LEAK DETECTION MONITOR
Brand:RLE Technologies
MPN:LD1000
SKU:LD1000
List Price:
$1,413.00
Today's Price:
$734.76
Log in for customized pricingproduct series specifications
- Supply Voltage:
- 24 VDC @ 300 mA max; 24 VAC @ 7.2 VA max.
- Relay Type:
- 1 Form C Leak Relay, 1 Form C Cable Fault Relay
- Relay Rating:
- 1 A @ 24 VDC, 0.5 A resistive @ 120 VAC
- Audible Alarm:
- 85 DBA @ 2FT
- Input:
- Water Leak Detection Cable (1000 FT Max), Chemical Sensing Cable (700 FT Max)
- LED Indication:
- Power (Green), Cable Fault (Amber), Leak Detected (Red)
- Response Time:
- 10 seconds or 2 minutes configurable
- Operating Temperature :
- 32° to 122‚Ñâ (0° to 50‚ÑÉ)
- Operating Humidity:
- 5 to 95%, non condensing
- Mounting:
- Wall Mount
- Dimensions:
- 4.1″W x 5.5″H x 2.35″D (10.4 x 13.9 x 5.8 cm)
- Approvals:
- CE, ETL,conforms to UL 61010-1, EN 61010-1, ROHS
- Weight:
- 2.3 lb ( 1.0 Kg)
- Warranty:
- 2 year
product series features
- Monitors up to 1,000 feet (305m) of sensing cable
- Three LED indictors: Power, Leak, Fault
- Adjustable sensitivity settings
- Selectable audible alarm annunciation
- Can be configured for supervised or non-supervised operation
- Wall mount enclosure
- Form C output relays for leak and fault alarms
more information & related documents
Series Description
The RLE Technologies SeaHawk LD1000 Series is a single zone leak detection controller that monitors up to 1,000 feet (305m) of sensing cable. It is compatible with all SeaHawk sensing cables and SeaHawk SD-Z and SD-Z1 spot detectors, and reports any fluid leak detected by these connected cables and spot detectors.
Kele Description
SEAHAWK SINGLE ZONE LEAK DET RELAY OUTPUT MODBUS
Manufacturer
RLE Technologies
Related Documents
LD1000 Spec Guide
