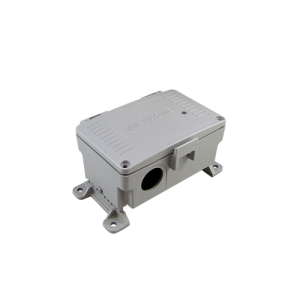

WD100 | Greystone Energy Systems | Leak
WATER DETECTOR STAND ALONE
Brand:Greystone Energy Systems
MPN:WD100
SKU:WD100
List Price:
$-.--
Today's Price:
$-.--
product series specifications
Power Supply: 12 - 27 VAC/VDC
Supply Current: 125 mA max @ 24 VAC
Alarm Outputs: 1 or 2 Form C relay(s), NO/NC, rated 2 Amps @ 30 VAC/VDC, 0.5 Amps @ 120 VAC
(resistive load)
Visual Indication: Tri-color LED - Green, Yellow, Red
Operating Temperature: 0 to 50°C (32 to 122°F)
Enclosure: ABS with hinged and gasket cover, IP65 (NEMA 4X)
Dimensions: 133.2mm L x 86.7mm W x 60.3-85.7mm H (5.2” x 3.4” x 2.4”- 3.4”)
Optional Leader Cable: FT-6 Plenum Rated.
Approvals: CE, RoHS
Country Of Origin: Canada
product series features
- Monitors variety of liquids
- Conductivity cable
- Fail-safe operation
- LED status indication
- Weatherproof enclosure
- Multiple cable lengths
- Optional Leader Cable
more information & related documents
Series Description
The conductivity cable water detector is used to detect the presence of water or conductive liquids. It is available with either one or two relay outputs and is designed to signal alarms if one or more of three conditions are met: water is detected, power is lost to the unit, or if there is an internal failure. The conductivity cable water detector is housed in an IP65 rated enclosure with various lengths of cable available. An optional leader cable is also available in various lengths. It features height adjustable mounting legs that include 5 preset mounting heights. An LED provides visual status indication.
Kele Description
WATER DETECTOR STAND ALONE
Manufacturer
Greystone Energy Systems
Related Documents
Declaration WLD Series 2021
