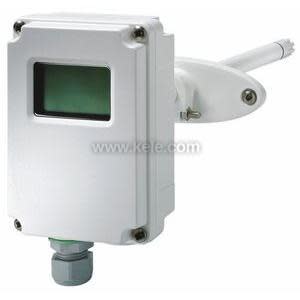

HMD82W | Vaisala | Humidity
Relative Humidity Transmitter, Duct, Wet Bulb/Dry Bulb
Brand:Vaisala
MPN:HMD82W
SKU:HMD82W
List Price:
$619.00
Today's Price:
$321.88
Log in for customized pricingproduct specifications
Type
Duct
Accuracy
3%
Housing Material
Poly
Probe Length
9.50 in
Sensor Element
1K Platinum RTD 385
Temperature Range
-40 to 140 °F (-40 to 60 °C)
Output
4 - 20 mA
Power Requirements
24 VAC/VDC
Accessory
DCPA-1.2,DCP-1.5-W,T81U-XR,T85U-XR,UR
Feature
Wet Bulb,Dry Bulb
Application
Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings
Mount
Duct
product series specifications
Accuracy:
Dew Point, Wet Bulb & Dry Bulb: ±1.8°F (1.0°C)
Enthalpy: ±2 BTU/lb
Relative Humidity: ±3% RH
Supply Voltage: 10 - 28 VDC
Signal Output: (2, Dry Bulb Temperature & Model Specific) 4-20 mA @ 600Ω
Measurement Range:
Dew Point, Wet Bulb & Dry Bulb: -40° to 140°F (-40° to 60°C)
Enthalpy: -10 to 190 BTU/lb (-40 to 460 kj/hg)
Relative Humidity: 0 to 100%
Sensing Technology: Viasal Intercap®
Operating Conditions:
Temperature: -40° to 140°F (-40° to 60°C)
Humidity: 0 to 99 % non-condensing
Dimensions:
Duct: 5.2" H x 2.8" W x 11.5" D (13.1 x 7.2 x 29.1 cm)
OSA: 8.1" H x 4.8" W x 3.9" D (20.7 x 12.2 x 10 cm)
Room: 7.6" H x 2.8" W x 1.6" D (19.3 x 7.2 x 4.1 cm)
Enclosure Rating: NEMA 4, IP65
Approvals: CE
Weight:
Duct: 0.65 lb (0.29 Kg)
OSA: 1.6 lb (0.72 Kg)
Room: 0.25 lb (0.11 Kg)
Warranty: 2 years
product series features
- Dew point, Wet Bulb and Dry Bulb accuracy of ±1.8 degrees F (±1 degrees C) over the specified range
- Enthalpy accuracy of ±2 BTU/lb over specified range
- Two 4-20 mA output signals
- Microprocessor-based signal processing
- Weather resistant duct/OSA mounting
- Temperature compensated
more information & related documents
Series Description
The Vaisala HMX8XD Dew Point, HMX8XW Wet Bulb, and HMX8XH Series Enthalpy Transmitters are rugged, compact, and ideally suited for monitoring dew point, wet bulb, or enthalpy in commercial HVAC/BAS applications. Using a Vaisala Intercap® RH sensor and an RTD temperature sensor, the unit's microprocessor computes the dew point, wet bulb, or enthalpy. Two linear outputs provide a 4-20mA signal for dew point, wet bulb, or enthalpy, and a 4-20 mA signal for dry bulb, temperature.
Kele Description
DUCT WET BULB/DRY BULB XMTR
Manufacturer
Vaisala
Related Documents
HMD-S-W8XD-H-W Installation Manual
