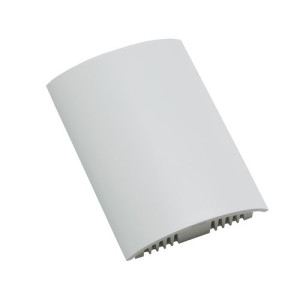

THHRAA3B | Tasseron Sensors | Humidity
ROOM HUMIDITY 3% 10K TYPE 2 0-5V (SELECTABLE)
Brand:Tasseron Sensors
MPN:THHRAA3B
SKU:THHRAA3B
List Price:
$298.00
Today's Price:
$154.96
Log in for customized pricingproduct series specifications
Enclosure: Injection-molded ABS UL 94 HB
Cover: Quick snap, injection-molded ABS
Mounting: Direct mounting with quick snap faceplate. Fits standard single gang box or mounts directly to wall. Built in level for easy accurate installation.
Connection: AWG 22-16 / 0.35 -1.5mm² spring-loaded, Quick Connect wire terminals
Humidity Transmitter: ±2% / ±3% / ±5%
Analog: with selectable output of 0 to 5V, 0 to 10V or 4 to 20mA
product series features
- Humidity or temperature and humidity options
- Attractive, streamlined, low-profile ABS enclosure
- Quick Connect wire terminals for easy wiring
- High airflow and fast response
- NTC thermistors, RTD elements or temperature transmitters available
- 2%, 3%, 5% RH accuracies
- Field selectable humidity analog (0-5V, 0-10V, 4-20mA) or digital (Modbus) outputs available
- Insulated back included
- CE and RoHS compliant
- 5-year limited warranty
- Made in the USA
more information & related documents
Series Description
Tasseron's Room Humidity Series is equipped with the highest quality components, offering long term stability and accuracy. All Room Humidity products feature Quick Connect wire terminals, which save time on every project with fast and secure installation. Available in the streamlined Aero housing, these are particularly suitable for Building Automation applications in schools, medical facilities, offices, and commercial spaces. <br>
Kele Description
ROOM HUMIDITY 3% 10K TYPE 2 0-5V (SELECTABLE)
Manufacturer
Tasseron Sensors
Tasseron Room Humidity Transmitter datasheet
