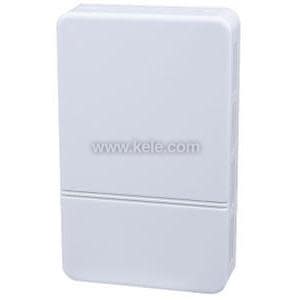

KHR5-T24 | Kele | Humidity
Wall Mounted Room/Space 5% Humidity Transmitter, 10,000Ω Thermistor @ 77˚F (25˚C), Type II, No Options
Brand:Kele
MPN:KHR5-T24
SKU:KHR5-T24
List Price:
$315.00
Today's Price:
$163.80
Log in for customized pricingproduct specifications
Accuracy
5%
Housing Material
Poly
Sensor Element
10K Type 2 Thermistor
Output
4 - 20 mA
Power Requirements
24 VAC/VDC
Accessory
DCPA-1.2,DCP-1.5-W,UR
Application
Humidification,Dehumidification,Monitoring Indoor Space Humidity,Clean Rooms,Hospitals,Process Control,Laboratories,Museums,Schools,Office Buildings,Data Centers,ESD (Anti-Static) Control
Mount
Room
product series specifications
Accuracy: 5% RH @ 73°F (23°C) from 5% to 90% RH; (0%-5% & 90%-100%) add 5%
Drift: <±0.5% drift per year
Thermal Effect: 0.07%/°F
Supply Voltage: 9.5-28 VDC, loop powered
Signal Output: 4-20 mA @ 725 Ω at 24 VDC, Passive temperature output: All Kele standard thermistors and RTDs
Sensing Technology: Capacitive, HDPE F6X Filter (Duct & OSA Only)
Operating Temperature: -20° to 158°F (-29° to 70°C)
Operating Humidity: 0-100% non-condensing
Enclosure Rating:
KHR: White plastic, UL94HB
KHD: Metal handy box
KHO: NEMA 3R plastic box
Probe:
KHD: 1/2" aluminum tube with HDPE FGX filter, 6″ (15 cm) long
KHO: 1/2" aluminum tube with HDPE FGX filter
Wiring Terminations: Screw terminals
Weight (without options):KHR: 0.2 lb (0.09 Kg); KHD: 1.2 lb (0.54 Kg); KHR: 0.5 lb (0.23 Kg)
Approvals: RoHS
Warranty: 1 year
product series features
- 0% to 100% RH measurement
- 2% accuracy (5% to 90% RH)
- Attractive room enclosure design
- Two-wire, 4-20 mA output
more information & related documents
Series Description
<p>The Kele KHR5 series humidity transmitters are specifically designed for use in HVAC/BAS applications. These instruments measure relative humidity from 0-100%. The standard two-wire 4-20mA output provides low-cost humidity monitoring for building control. The RH transmitters are available with thermistor or RTD temperature sensors.</p>
Kele Description
5% WALL MOUNT RH XMTR W/TEMP 10K 2 OHM THMS
Manufacturer
Kele
