KHR2

KHR2 | Kele | Humidity

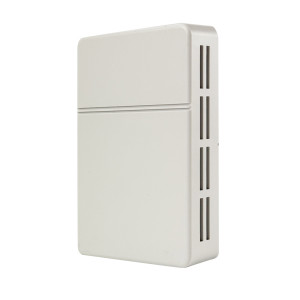

Wall Mounted Room/Space 2% Humidity Transmitter

Brand:Kele

MPN:KHR2

SKU:KHR2

List Price:

$317.00

Today's Price:

$164.84



Availability: 20 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Accessory

DCPA-1.2, DCP-1.5-W, UR

Accuracy

±2.00

Application

Humidification, Dehumidification, Monitoring Indoor Space Humidity, Clean Rooms, Hospitals, Process Control, Laboratories,Museums, Schools, Office Buildings, Data Centers, ESD (Anti-Static) Control

Housing Material

Poly

Housing Rating

NEMA 1

Output Signal

4-20 mA

Mounting Location

Room

Power Requirements

24 VAC/VDC

product series specifications

    Accuracy 2% RH @ 73‚Ñâ (23‚ÑÉ) from 5% to 90%:
    :
  • (0-5% & 90%-100%) add 3%
    Drift:
  • <±0.5% per year
    Thermal Effect:
  • 0.07% / ‚Ñâ
    Supply Voltage:
  • 9.5-28 VDC, Loop powered
    Signal Output:
  • 4-20 mA @ 725‚Ѷ at 24 VDC, Passive temperature output: All Kele standard thermistors and RTDs
    Sensing Technology:
  • capacitive
    Operating Temperature:
  • -20° to 158‚Ñâ (-29° to 70‚ÑÉ)
    Operating Humidity:
  • 0-100% Non-condensing
    Enclosure Rating:
    KHR:
  • NEMA 1, White plastic, UL94HB
    KHD:
  • NEMA 1, Metal handy box
    KHO:
  • NEMA 3R, plastic box
    Probe:
    Duct:
  • Probe: 1/2‚Ä= aluminum tube with HDPE FGX filter; 6‚Ä= (15 cm ) long
    OSA:
  • Probe: 1/2‚Ä= aluminum tube with HDPE FGX filter
    Wiring Terminations:
  • Screw terminals
    Dimensions:
    Wall:
    OSA:
    Duct:
    Weight (without options) :
    KHR :
  • 0.21 lb (0.09 Kg)
    KHD :
  • 1.2 lb (0.59 Kg)
    KHO :
  • 0.52 lb (0.24 Kg)
    Approvals :
  • RoHS
    Warranty:
  • 1 year

product series features

  • 0% to 100% RH measurement
  • 2% accuracy (5% to 90% RH)
  • Attractive room enclosure design
  • Two-wire, 4-20 mA output

more information & related documents

Series Description

The Kele KHR, KHD, and KHO Series humidity transmitters are specifically designed for use in HVAC/BAS applications. These instruments measure relative humidity from 0% to 100%. The standard two-wire, 4-20 mA output provides low-cost humidity monitoring for building control. The RH transmitters are available with thermistor or RTD temperature sensors. They come in room (KHR), duct (KHD), and OSA (KHO) mounting styles.

Kele Description

2% WALL MOUNT RH XMTR

Manufacturer

Kele
