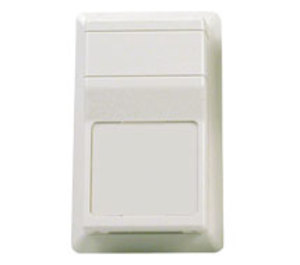

HWD20K-T24 | Kele | Humidity
2% DELTA WALL RH XMTR W/TEMP SNSR 10K OHM 2 THMS
Brand:Kele
MPN:HWD20K-T24
SKU:HWD20K-T24
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Accuracy
2%
Output
4 - 20 mA
Power Requirements
24 VAC/VDC
Mount
Room
product series specifications
Accuracy: 2% RH @ 73°F (23°C) from 5% to 90% RH
Stability: 0.5% drift per year
Thermal Effect: 0.07% per °F
Supply Voltage: 9.5-28 VDC
Signal Output: 4-20 mA, thermistor, RTD
Maximum Output Impedance mA: 725 Ω @ 24VDC (Supply voltage - 9.5V) / 0.02
Measurement Range:
RH: 0-100%
Temperature: -20° to 140°F (-29° to 60°C) (see ordering information)
Operating Temperature: -20° to 158°F (-29° to 70°C)
Operating Humidity: 0-100% RH non-condensing
Enclosure Rating: plastic
Wiring Terminations: Terminal block (22 to 16 AWG)
Dimensions: 2.8" x 4.5" x 1.0" (7 x 11.4 x 2.5 cm)
Weight: 0.3 lb (0.09 Kg)
Approvals: RoHS
Warranty: 1 year
product series features
- 2% accuracy (5% to 90%)
- Two-wire, 4-20 mA RH output
- Optional temperature thermistor
- Optional temperature RTD
more information & related documents
Series Description
The Kele Series HWD20K Wall Delta style humidity transmitters have been specifically designed for use in HVAC/BAS applications. These instruments measure relative humidity from 5% to 90% RH with 2% accuracy and produce a two wire 4-20 mA linear output. All are available with an optional passive RTD or thermistor.
Kele Description
2% DELTA WALL RH XMTR W/TEMP SNSR 10K OHM 2 THMS
Manufacturer
Kele
