Home|Products|Humidity|H_30K Series|HW30K

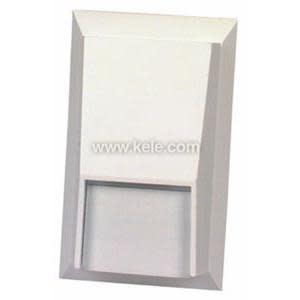

HW30K

HW30K | Kele | Humidity

Room Humidity Transmitter, 3% Beige, 4-20 mA output, No Temperature Sensor

Brand:Kele

MPN:HW30K

SKU:HW30K

List Price:

$305.00

Today's Price:

$158.60



Availability: 5 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Accessory

DCPA-1.2, DCP-1.5-W, T81U-XR, T85U-XR, UR

Accuracy

±3.00%

Application

Humidification, Dehumidification, Monitoring Indoor Space Humidity, Clean Rooms, Hospitals, Process Control, Laboratories,Museums, Schools, Office Buildings, Data Centers, ESD (Anti-Static) Control

Housing Material

Poly

Housing Rating

NEMA 1

Output Signal

4-20 mA

Mounting Location

Room

Power Requirements

24 VAC/VDC

product series specifications

    Accuracy :
  • 3% RH @ 73°F (23°C) from 5% to 90%; (0-5% & 90%-100%) add 4%
    Stability:
  • typically <0.5% drift per year
    Thermal Effect:
  • 0.07% per ‚Ñâ
    Supply Voltage:
  • 9.5-28 VDC, loop powered
    Signal Output:
  • 4-20 mA @ 725‚Ѷ, optional thermistor, RTD
    Measurement Range:
    RH:
  • 0-100%
    Temperature:
  • -20° to 140‚Ñâ (-29° to 60‚ÑÉ) (see ordering information)
    Sensor Protection:
  • HDPE FGX filter (duct and OSA)
    Operating Temperature:
  • -20° to 158‚Ñâ (-29° to 70‚ÑÉ)
    Operating Humidity:
  • 0-100% RH non-condensing
    Enclosure Rating:
    Room:
    Duct/OSA:
  • NEMA 1, Beige plastic
    Wiring Terminations:
  • Terminal block (22 to 16 AWG)
    Weight:
    Wall :
  • 0.3 lb (0.09 Kg)
    Duct :
  • 1.14 lb (0.52 Kg)
    OSA :
  • 1.2 lb (0.54 Kg)
    Approvals:
  • RoHs
    Warranty:
  • 1 year

product series features

  • 3% accuracy (5% to 90%)
  • Two wire, 4-20mA RH output
  • Optional temperature thermistor
  • Optional temperature RTD
  • Optional temperature 4-20mA (Duct or OSA)

more information & related documents

Series Description

The Kele Series H_30K humidity transmitters have been specifically designed to measure humidity in HVAC applications and building automation systems, BAS. These humidity sensors measure relative humidity from 5 to 95% RH with ±3% accuracy and transmit via a two wire, 4-20mA linear output. All transmitters come equipped with an optional passive RTD or thermistor. The duct and OSA versions may also be fitted with a 4-20mA temperature transmitter.

Kele Description

3% WALL MOUNT RH XMTR

Manufacturer

Kele
