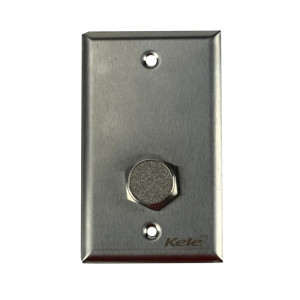

Brushed metal wall plate with hex nut securing a porous metal sensor; two holes for mounting screws.

HS20K-V-T3 | Kele | Humidity

Stainless Steel Wall Plate Humidity SENSOR with 0-5 VDC Output, 10,000Ω Thermistor @ 77˚F (26˚C), Type III (Gray leads)

Brand:Kele

MPN:HS20K-V-T3

SKU:HS20K-V-T3

List Price:

$261.00

Today's Price:

$135.72

product datasheet

product specifications

Type

Stainless Steel Plate

Accuracy

Housing Material

Metallic

Sensor Element

10K Type 3 Thermistor

Output

0 - 5 VDC

Power Requirements

24 VAC/VDC

Accessory

DCPA-1.2,DCP-1.5-W,DCP-524,UR

Application

Humidification,Dehumidification,Monitoring Indoor Space Humidity,Clean Rooms,Hospitals,Process Control,Laboratories,Museums,Schools,Office Buildings,Data Centers,ESD (Anti-Static) Control

Mount

Room

product series specifications

Accuracy: 2% RH @ 73°F (23°C) from 5% to 90%; (0-5% & 90-100%) add 3%

Thermal Effect: 0.07% per °F

Supply Voltage:

HS20K-C: 9.5-28VDC, Loop Powered

HS20K-V: 5 VDC

Signal Output:

HS20K-C: 4-20 mA @ 725 Ω, passive thermistor or RTD

HS20K-V: 0 to 5 VDC, passive thermistor or RTD

Sensing Technology: Capacitive

Operating Temperature: -20° to 158°F (-29° to 70°C)

Operating Humidity: 0-100% RH non-condensing

Enclosure Rating: NEMA 1, Flush mounted stainless steel plate

Wiring Terminations: Terminal block (22 to 16 AWG)

Weight: 0.34 lb (0.15 Kg)

Approvals: RoHS

Warranty: 1 year

product series features

2% accuracy
4-20mA or 0-5 VDC analog outputs
Passive temperature sensors output optional
Stainless steel plate mounted

more information & related documents

Series Description

The Kele Model HS20K-C and HS20K-V humidity transmitters have been specifically designed for use with HVAC/BAS applications and, with its unique low-profile design, is perfect for museums, institutions or other architecturally challenging locations. The HS20K will monitor humidity from 5% to 95% with 2% accuracy with a 4-20 mA analog current output or a 0-5 VDC voltage output. The HS20K Series is available with optional passive temperature sensors.

Kele Description

2% S/S WALL PLATE RH TRANS 0-5 VDC 10K THMS 3

Manufacturer

Kele
