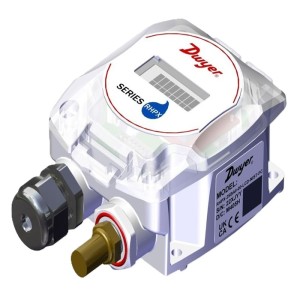

RHPX-3SBA0-00-LCD | Dwyer Instruments | Humidity

3% HMD/TEMP TRANSMITTER, BRONZE, SELECTABLE OUTPUT, LCD DISPLAY

Brand:Dwyer Instruments

MPN:RHPX-3SBA0-00-LCD

SKU:RHPX-3SBA0-00-LCD

List Price:

$528.10

Today's Price:

$274.61

product datasheet

Lead time of > 15 days. Chat with Kele experts now

product specifications

Display

Available

Enclosure Rating

IP66

Application

Humidity

Operating Temperature Range

-40F to 140F

product series specifications

Humidity Measurement Range: 0% to 100% humidity

Temperature Measurement Range: -40F to 140F, -40C to 60C

Resolution: Relative Humidity: 0.1%; Temperature: 0.1F/C; Absolute Humidity: 0.1 g/m3

Humidity Analog Output: 4-20 mA or 0-5 VDC, 0-10 VDC at 5 mA max, field selectable

Active Temperature Analog Output: 4-20 mA or 0-5 VDC, 0-10 VDC at 5 mA max, field selectable

Operating Temperature Range: -40F to 140F, -40C to 60C; with LCD: -4F to 140F, -20C to 60C

Power Requirements: Communications Model: 14 to 35 VDC or 10 to 32 VAC; Analog Model: 4-20mA: 10 to 35 VDC; Vout: 15 to 35 VDC or 15 to 29 VAC

Wiring Connection: Removable terminal block

Enclosure Material: UL 94 V-0

Enclosure Rating: IP66

product series features

Reduced installation costs with multiple on-board sensors
Minimal maintenance with UV rated outdoor enclosures
UL 2043 compliant allows installation into the plenum space
Easy installation with removable terminal block, attached lid, and cable management

more information & related documents

Series Description

The Series RHPX Humidity and Temperature Transmitter accurately monitors the humidity and temperature for building control functions to maximize occupant comfort and minimze operating costs. Featuring capacitance polymer humidity sensors, models are available in 2% and 3% accuracies. An optional two-line alphanumeric LCD Display is available. The high accuracy, long term stability and reliable operation in multiple enclosure styles make the Series RHPX an excellent choice for monitoring humidity and temperature in building energy management systems, commercial HVAC systems, clean rooms, museums, and data centers. The Series RHPX can be optionally configured to supply absolute or relative humidity or dew point in addition to enthalpy.

Kele Description

3% HMD/TEMP TRANSMITTER, BRONZE, SELECTABLE OUTPUT, LCD DISPLAY

Manufacturer

Dwyer Instruments
