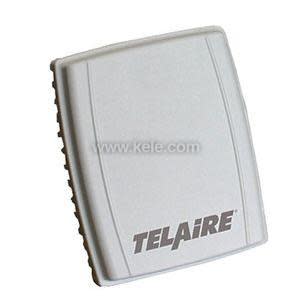

White square wall sensor with gentle curves and vent slots down one side, bearing the Telaire name

P40254201 | Telaire/Amphenol | Humidity

Humidity Transmitter, Wall, ±5.00%, 0° to 50°C

Brand:Telaire/Amphenol

MPN:P40254201

SKU:GEH5-SN-TT0

List Price:

$525.00

Today's Price:

$273.00

product datasheet

installation instructions

catalog page

Lead time of 10 days. Chat with Kele experts now

product specifications

Accuracy

Housing Material

Poly

Sensor Element

10K Thermistor

Temperature Range

32 to 122 °F (0 to 50 °C)

Output

4 - 20 mA

Power Requirements

12-30 VDC

Accessory

DCPA-1.2,DCP-1.5-W,T81U-XR,T85U-XR,UR

Application

Humidification,Dehumidification,Supply Air,Discharge Air,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings,Labs,Refrigeration,Museums,Archives

Mount

Room

product series specifications

Accuracy: 5% (10% to 90%)

Supply Voltage: 12-30 VDC, 100 mA

Signal Output:4-20 mA @ 700Ω, 0-5V/0-10V selectable @ 10KΩ max.; 0-100% RH

Sensing Technology: Capacitive and replaceable

Operating Humidity: 0% to 99%, non-condensing

Operating Temperature:-40° to 140°F (-40° to 60°C)

Enclosure Rating:

Room: ABS plastic, UL94V Room Installed IP20, NEMA 1

Duct/OSA: IP42, NEMA 3R Stainless steel with removable tip, PTFE Teflon® shield

Wiring Terminations: 16 to 22 AWG terminals

Weight:

Room: 0.34 lb (0.15 Kg)

Duct: 0.96 lb (0.44 Kg)

OSA: 1.22 lb (0.55 Kg)

Warranty: 2 years

product series features

±5% accuracy
Temperature compensated
Field-selectable 4-20 mA, 0-10V, or 0-5V outputs
Replaceable sensor
Optional temperature transmitter

more information & related documents

Series Description

The Telaire/Amphenol Advanced Sensors GEH5 Series 5% accuracy humidity transmitters are designed specifically for commercial HVAC/BAS applications. The room, duct, and OSA transmitters have replaceable sensor tips and switch-selectable outputs of 4-20 mA, 0-5 VDC or 0-10 VDC. The GEH5 Series also has an optional temperature transmitter, which has the same selectable outputs as humidity. All duct and OSA units come in weather-resistant enclosures rated for IP42 or NEMA 3R applications.

Kele Description

5% ROOM RH XMTR W/TEMP 40/90F W/NIST

Manufacturer

Telaire/Amphenol
