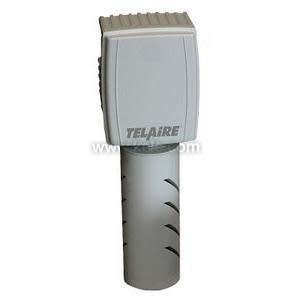

GEH3-ON-TT2 | Telaire/Amphenol | Humidity
Humidity Transmitter, OSA, ±3.00%
Brand:Telaire/Amphenol
MPN:GEH3-ON-TT2
SKU:GEH3-ON-TT2
List Price:
$590.00
Today's Price:
$306.80
Log in for customized pricingproduct specifications
Accuracy
3%
Housing Material
Poly
Sensor Element
10K Thermistor
Temperature Range
-20 to 140 °F (-29 to 60 °C)
Output
4 - 20 mA
Enclosure Rating
IP42
Power Requirements
12-30 VDC
Accessory
DCPA-1.2,DCP-1.5-W,T81U-XR,T85U-XR,UR
Feature
NIST
Application
Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
Mount
OSA
product series specifications
Accuracy: 3% (10% to 90%)
Supply Voltage: 12-30 VDC, 2.4 VA
Signal Output: 4-20 mA @ 700Ω, 0-5V/0-10V selectable @ 10KΩ max.; 0-100% RH
Sensing Technology: Capacitive and replaceable
Operating Humidity: 0% to 99%, non-condensing
Operating Temperature: -40° to 140°F (-40° to 60°C)
Enclosure Rating:
Room: ABS plastic, UL94V Room Installed IP20, NEMA 1
Duct/OSA: IP42, NEMA 3R Stainless steel with removable tip, PTFE Teflon® Shield
Wiring Terminations: 16 to 22 AWG terminals
Weight:
Room: 0.5 lb. (0.23 Kg)
Duct/OSA: 1.3 lb. (0.59 Kg)
Warranty: 2 years
product series features
- ±3% accuracy
- Temperature compensated
- Field-selectable 4-20 mA, 0-10V, or 0-5V outputs
- Replaceable sensor
- Optional temperature transmitter
more information & related documents
Series Description
The Telaire/Amphenol Advanced Sensors GEH3 Series 3% accuracy humidity transmitters are designed specifically for commercial HVAC/BAS applications. The room, duct, and OSA transmitters have replaceable sensor tips and switch-selectable outputs of 4-20 mA, 0-5 VDC or 0-10 VDC. The GEH3 Series also has an optional temperature transmitter, which has the same selectable outputs as humidity. All duct and OSA units come in weather-resistant enclosures rated for IP42 or NEMA 3R applications.
Kele Description
3% OSA RH XMTR W/TEMP -20/140F W/NIST
Manufacturer
Telaire/Amphenol
Related Documents
GEH3 Series Datasheet
