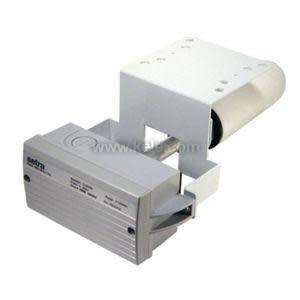

SRH15PO11T0N | Setra | Humidity

Relative Humidity Sensor, 5%, Outside Air Mount, 4-20 mA Output, No Temperature, No Display

Brand:Setra

MPN:SRH15PO11T0N

SKU:SRH15PO11T0N

List Price:

$362.01

Today's Price:

$188.25

product datasheet

installation instructions

catalog page

Lead time of 10 days. Chat with Kele experts now

product specifications

Accuracy

Housing Material

Poly

Output

4 - 20 mA

Power Requirements

24 VAC,24 VDC

Accessory

SRH35PT0,DCPA-1.2,DCP-1.5-W,UR

Application

Humidification,Dehumidification,Monitoring Indoor Space Humidity,Clean Rooms,Hospitals,Process Control,Laboratories,Museums,Schools,Office Buildings,Data Centers,ESD (Anti-Static) Control

Mount

OSA

product series specifications

Accuracy: 5% RH (0-100% RH) @ 73°F (23°C)

Drift:< 1% RH/yr @ 73°F (23°C), 50% RH

Supply Voltage: 12-30 VDC

Signal Output: 4-20 mA, 2-wire

Maximum Output:

Impedance: 700Ω @ 24 VDC Ω = (supply - 10) / 0.02

Sensing Technology: Replaceable capacitive polymer

Sensor Protection: Porous polyethylene

Protection: Reverse polarity protection

Operating Humidity: 0 to100%

Operating Temperature: -40° to 140°F (-40° to 60°C)

Enclosure:

Room: ABS plastic (flammability, 94V-0)

Duct/OSA: Polycarbonate (flammability, 94V-0), NEMA 4 (IP65)

Wiring Terminations: Pluggable terminal block

Dimensions:

Room 4.7"H x 2.8"W x 1.0‚ÄùD (12 x 7 x 2.5 cm):

Duct 5.1"L x 2.7"W x 2.4"D (13 x 6.8 x 7 cm) 8.5" (21.6 cm) probe length 1/2" probe √ò:

OSA 6.1"L x 4"W x 12.5"D (15.5 x 10 x 32 cm):

Approvals: CE, RoHS

Weight:

Room: 0.5 lb (0.23 kg)

Duct: 1.3 lb (0.59 kg)

OSA: 2.6 lb (1.2 kg)

Warranty: 1 year (sensor) 3 years (electronics only)

product series features

±5% RH accuracy
No recalibration required
Replaceable sensor
Capacitive sensor technology
Reverse polarity protection

more information & related documents

Series Description

Designed for the HVAC control system, the Setra SRH15 Series humidity transmitters offer reliable measurement of RH levels from 0 to 100% with an accuracy of ±5%. Available in wall, duct, and outside air configurations, the SRH Series transmitters are easy to install and service if necessary. The transmitters utilize a field replaceable sensor tip that allows the end user to replace sensors on-site-eliminating factory calibration and downtime.

Kele Description

Relative Humidity Sensor, 5%, Outside Air Mount, 4-20 mA Output, No Temperature, No Display

Manufacturer

Setra
