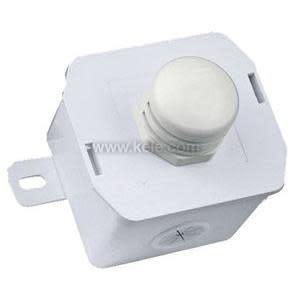

KHO2-T24 | Kele | Humidity

Outside Air 2% Humidity Transmitter, 10,000Ω Thermistor @ 77˚F (25˚C), Type II, No Options

Brand:Kele

MPN:KHO2-T24

SKU:KHO2-T24

List Price:

$-.--

Today's Price:

$-.--

product specifications

Accuracy

Housing Material

Metallic

Sensor Element

10K Type 2 Thermistor

Output

4 - 20 mA

Power Requirements

24 VAC,24 VDC

Accessory

DCPA-1.2,DCP-1.5-W,UR

Application

Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications

Mount

OSA

product series specifications

Accuracy:2% or3% RH @ 73°F from 5% to 90% RH; (0%-5% & 90%-100%) add 4%

Drift: <±0.5% per year

Thermal Effect: 0.07% / °F

Supply Voltage: 9.5-28 VDC, Loop powered

Signal Output: 4-20 mA @ 725Ω at 24 VDC, Passive temperature output: All Kele standard thermistors and RTDs

Sensing Technology: capacitive

Operating Temperature: -20° to 158°F (-29° to 70°C)

Operating Humidity: 0-100% Non-condensing

Enclosure Rating:

KHR: NEMA 1, White plastic, UL94HB

KHD: NEMA 1, Metal handy box

KHO: NEMA 3R, plastic box

Probe:

Duct: Probe: 1/2" aluminum tube with HDPE FGX filter; 6" (15 cm) long

OSA: Probe: 1/2" aluminum tube with HDPE FGX filter

Wiring Terminations: Screw terminals

Weight (without options):

KHR : 0.21 lb (0.09 Kg)

KHD : 1.2 lb (0.59 Kg)

KHO : 0.52 lb (0.24 Kg)

Approvals : RoHS

Warranty: 1 year

product series features

0% to 100% RH measurement
2% accuracy (5% to 90% RH)
Attractive room enclosure design
Two-wire, 4-20 mA output

more information & related documents

Series Description

<p>The Kele KHR2 series humidity transmitters are specifically designed for use in HVAC/BAS applications. These instruments measure relative humidity from 0-100%. The standard two-wire 4-20mA output provides low-cost humidity monitoring for building control. The RH transmitters are available with thermistor or RTD temperature sensors.</p>

Kele Description

2% OUTSIDE AIR RH XMTR W/TEMP 10K 2 OHM THMS

Manufacturer

Kele
