HO31K-T24

HO31K-T24 | Kele | Humidity

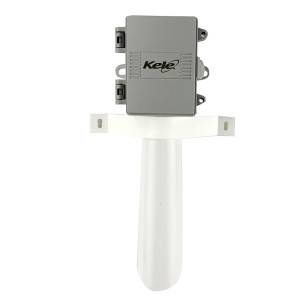

Outside Air (OSA) Humidity Transmitter, 3%, 4-20 mA output, 10,000Ω thermistor @ 77°F (25°C), Type II

Brand:Kele

MPN:HO31K-T24

SKU:HO31K-T24

List Price:

$422.00

Today's Price:

$219.44



Availability: 4 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Accessory

DCPA-1.2, DCP-1.5-W, T81U-XR, T85U-XR, UR

Accuracy

±3.00

Application

Outdoor Air Humidity, Economizer Control, Psychrometric Calculations, Enthalpy, Dew Point, Wash Down Applications

Housing Material

Poly

Housing Rating

NEMA 3R

Sensor Element

10K Type 2 Thermistor

Output Signal

4-20 mA

Mounting Location

OSA

Power Requirements

24 VAC/VDC

product series specifications

    Accuracy:
  • 3% RH @ 73‚Ñâ (23‚ÑÉ) from 5% to 90%; (0-5% & 90%-100%) add 4%
    Thermal Effect:
  • 0.07% per ‚Ñâ
    Stability:
  • typically <±1% drift per year
    Supply Voltage:
  • 9.5-28 VDC, loop powered
    Signal Output:
  • 4-20 mA @ 725‚Ѷ, optional thermistor, RTD
    Measurement Range:
    RH:
  • 0-100%
    Temperature:
  • -20° to 140‚Ñâ (29° to 60‚ÑÉ) (see ordering information)
    Sensor Protection:
  • HDPE FGX filter (duct and OSA)
    Operating Temperature:
  • -20° to 158‚Ñâ (-29° to 70‚ÑÉ)
    Operating Humidity:
  • 0-100% RH non-condensing
    Enclosure Rating:
  • NEMA 1, White plastic
    Wiring Terminations:
  • Screw terminals for loop termination
    Weight:
    Room:
  • 0.3 lb (0.09 Kg)
    Duct:
  • 0.58 lb (0.26 Kg)
    OSA:
  • 0.72 lb (0.33 Kg)
    Approvals:
  • RoHs
    Warranty:
  • 1 year

product series features

  • 3% accuracy (5% to 90% RH)
  • Two-wire, 4-20 mA output
  • White plastic design

more information & related documents

Series Description

The Kele Models HW31K, HD31K, and HO31K 3% humidity transmitters are specifically designed for use in HVAC applications and Building Automation Systems, BAS. They measure relative humidity from 0% to 100%. The standard two-wire, 4-20 mA output provides low-cost humidity monitoring for building control. The relative humidity transmitters are available with thermistor or RTD temperature sensors. They are available in room, duct, and OSA mounting styles.

Kele Description

3% OUTSIDE AIR RH XMTR W/TEMP SNSR 10K OHM 2 THMS
