HO20K-T24

HO20K-T24 | Kele | Humidity

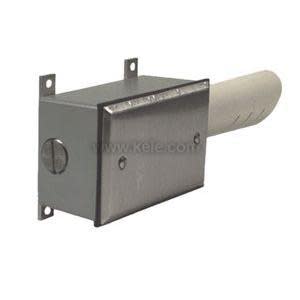

Outside Air (OSA) Humidity Transmitter, 2%, 4-20 mA output, 10,000Ω thermistor @ 77°F (25°C), Type II

Brand:Kele

MPN:HO20K-T24

SKU:HO20K-T24

List Price:

$534.00

Today's Price:

$277.68



Availability: 17 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Accessory

DCPA-1.2, DCP-1.5-W, T81U-XR, T85U-XR, UR

Accuracy

±2.00%

Application

Outdoor Air Humidity, Economizer Control, Psychrometric Calculations, Enthalpy, Dew Point, Wash Down Applications

Housing Material

Metallic

Housing Rating

NEMA 4

Sensor Element

10K Type 2 Thermistor

Output Signal

4-20 mA

Mounting Location

OSA

Power Requirements

24 VAC/VDC

product series specifications

    Accuracy:
  • 2% RH @ 73‚Ñâ (23‚ÑÉ) from 5% to 90% RH; (0-5% & 90%-100%) add 3%
    Stability:
  • 0.5% drift per year
    Thermal Effect:
  • 0.07% per °F
    Supply Voltage:
  • 9.5-28 VDC, loop powered
    Signal Output:
  • 4-20 mA @ 725‚Ѷ, optional thermistor, RTD
    Measurement Range:
    RH:
  • 0-100%
    Temperature:
  • -20° to 140‚Ñâ (-29° to 60‚ÑÉ) (see ordering information)
    Sensor Protection:
    (Duct and OSA):
  • Plastic filter
    Operating Temperature:
  • -20° to 158‚Ñâ (-29° to 70‚ÑÉ)
    Operating Humidity:
  • 0-100% RH non-condensing
    Enclosure Rating:
    Room:
  • NEMA 1, Beige plastic
    Duct/OSA:
  • NEMA 4, weather resistant cast aluminum
    Wiring Terminations:
  • Terminal block (22 to 16 AWG)
    Weight:
    Room:
  • 0.3 lb (0.09 Kg)
    Duct:
  • 1.14 lb (0.52 Kg)
    OSA:
  • 1.2 lb (0.54 Kg)
    Approvals:
  • RoHs
    Warranty:
  • 1 year

product series features

  • 2% accuracy (5% to 90%)
  • Two-wire, 4-20 mA RH output
  • Optional temperature thermistor
  • Optional temperature RTD
  • Optional temperature 4-20mA (duct or OSA)

more information & related documents

Series Description

The Kele Series H_20K Humidity Transmitters are indispensable for Building Automation Systems, BAS, and HVAC applications. Each transmitter measures relative humidity from 5% to 95% RH with 2% accuracy and produce a two wire 4-20 mA linear output. All are available with an optional passive RTD or thermistor. The duct and OSA versions may also be fitted with a 4-20mA temperature transmitter.

Kele Description

2% OUTSIDE AIR RH XMTR W/TEMP SNSR 10K OHM 2 THMS

Manufacturer

Kele
