RHP-2O20 | Dwyer Instruments | Humidity
Relative Humidity, Passive Temperature Sensor Transmitter, 2%, OSA (Outside Air), 0-10 VDC RH Output, No Temperature Sensor, No Options
Brand:Dwyer Instruments
MPN:RHP-2O20
SKU:RHP-2O20
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Accuracy
2%
Housing Material
Poly
Output
0 - 10 VDC
Power Requirements
24 VAC,24 VDC
Accessory
DCPA-1.2,DCP-1.5-W,UR
Application
Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
Mount
OSA
product series features
- Robust capacitance humidity sensor
- Models with LCD display
- Interchangeable filter and replaceable sensor options
more information & related documents
Series Description

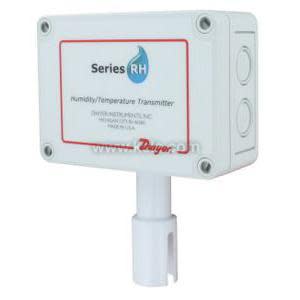

The Dwyer Series RHP Temperature and Humidity Transmitter combine the voltage or current humidity transmitter output with a passive temperature thermistor or RTD output. The polymer capacitance humidity sensor is not affected by condensation, fog, high humidity, or contaminants. The humidity sensors are available with 2% or 3% accuracies. Duct mounted transmitters are available with an optional two-line alpha numeric LCD display. The Series RHP is available with interchangeable filter options as well as replaceable sensors.
Kele Description
2% OSA RH XMITER 0-10VDC
Manufacturer
Dwyer Instruments
Related Documents
RHP-D,R,O Installation Manual
