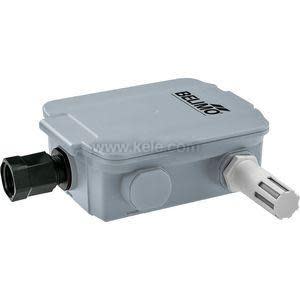

22UTH-530L | Belimo | Humidity
Outdoor Sensor Humidity, Temperature with Weather Shield Active, 4...20 mA, Passive NTC10k2
Brand:Belimo
MPN:22UTH-530L
SKU:22UTH-530L
List Price:
$613.53
Today's Price:
$319.04
Log in for customized pricingproduct specifications
Accuracy
2%
Housing Material
Poly
Sensor Element
10K Type 2 Thermistor
Output
4 - 20 mA
Enclosure Rating
NEMA 4X
Power Requirements
24 VAC,24 VDC
Accessory
DCPA-1.2,DCP-1.5-W,UR
Application
Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
Mount
OSA
product series specifications
Measuring Range: Temperature Active sensor: range selectable Attention: Max. measuring temperature is restricted by max. medium temperature (see Safety data)
Setting range [°C] range [°F] Factory setting:
S0 -40°C to 60°C -40°F to 160°F
S1 0°C to 50°C 40°F to 140°F
S2 -15°C to 35°C 0°F to 100°F
S3 -20°C to 80°C 0°F to 200°F
Absolute Humidity adjustable at the transducer: 0 to 50 g/m≥ (default setting), 0 to 80 g/m≥
Enthalpy: 0 to 85 kJ/kg
Dew Point adjustable at the transducer: 40°F to 140°F [0°C to 50°C] (default setting), 0°F to 200°F [-20°C to 80°C]
Accuracy:
Humidity ±2% between 10 to 90% RH @ 70°F [21°C]
Temperature ±0.9°F @ 77°F [±0.5°C @ 25°C]
Sensing Technology: Polymer capacitive sensor with stainless steel wire mesh
Operating Humidity: 0 to 100% RH non-condensing
Operating Temperature: -30°F to 120°F [-35°C to 50°C]
Enclosure: NEMA 4X/ IP65
Dimensions: 6.14"x 5.32"x 2.27"
Approvals: ISO 9001, UL 2043, UL 50
Weight: 0.21 lbs
Warranty: 5 years
product series features
- 2% Relative Humidity accuracy
- Active/Passive Outputs for Temperature
- NEMA 4X/IP65 rated enclosure
- Output for rH, abs. Humidity, Enthalpy, Dewpoint
more information & related documents
Series Description
Belimo 22UTH Outdoor Humidity, Temperature Sensors are ±2% accurate humidity and temperature sensor for outdoor applications. Temperature is available with dual active 4 to 20 mA outputs or passive only for temperature. NEMA 4X /IP65 rated enclosure standard. Field selectable output for RH, absolute humidity, dew point or enthalpy. Models are available in Modbus RTU and BACnet MS/TP.
Kele Description
OUTDR HUMIDITY, 10K2 TEMP, 4-20 MA RH
