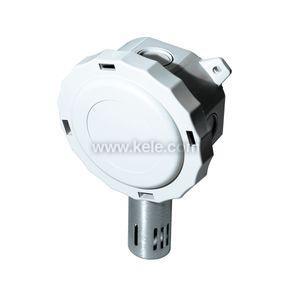

A/RH2-CP-O | ACI | Humidity

Outdoor Air Humidity||Economizer Control||Psychrometric Calculations||Enthalpy||Dew Point||Wash Down Applications

Humidity Sensor, OSA, ±2.00%, Field Selectable Output, 10K Type II

Poly

±2.00%

4-20 mA||0-5 VDC||0-10 VDC

10K Type II

HUMIDITY SENSOR, OSA, ±2.00%, FLD SEL OUT, 10K TYPE II

OSA

The ACI A/RH2 Series Relative Humidity Transmitters utilize a capacitive humidity sensor element to deliver a proportional 4 to 20 mA, 0 to 5 volt DC, or 0 to 10 volt DC output. Each relative humidity transmitter can monitor room and duct humidity as well as outside moisture. The transmitters are compatible with stainless steel wall plate applications and are designed for use in Building Automation Systems, BAS, and HVAC applications. The A/RH2 Series has on board DIP switches. These allow the user to select the desired output signal and can be powered by AC or DC power sources. Each A/RH2 Series humidity transmitter is calibrated using a NIST Traceable Temperature/Humidity Chamber. Three and five point NIST calibration certificates are available.

2% OUTSIDE AIR RH XMTR W/TEMP SNSR 10K OHM 2 THMS

ACI
