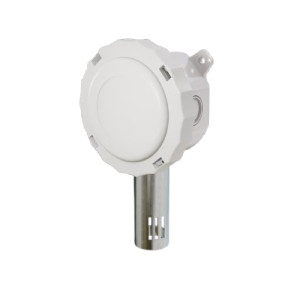

A/RH2-1K-2W-O | ACI | Humidity

Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Outside Air, ± 2% Accuracy, 1,000 Ohm RTD (Two Wires), Euro Enclosure

Brand:ACI

MPN:A/RH2-1K-2W-O

SKU:A/RH2-1K-O

List Price:

$486.00

Today's Price:

$252.72

product datasheet

installation instructions

catalog page

product specifications

Accuracy

Housing Material

Poly

Sensor Element

1K Platinum RTD 385

Output

4 - 20 mA

Power Requirements

24 VAC,24 VDC

Application

Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications

Mount

OSA

product series specifications

Accuracy: ±2% @ 77°F (25°C) from 10% to 95%

Stability: ±2% RH/5 years

Supply Voltage: 12-40 VDC or 18-28 VAC

Signal Output: 4-20 mA @ 300Ω, 0-5/10 VDC @ 4kΩ min, (field selectable) except SP 0-5/10 VDC only

Measurement Range: 0% to 100%

Sensing Technology: Capacitive

Operating Temperature:

Room: 32° to 122°F (0° to 50°C)

Duct/OSA: -40° to 140°F (-40° to 60°C)

Enclosure:

Room: Plastic Delta-style

Duct/OSA: Plastic weatherproof

Dimensions:

Room: 3.8"H x 2.8"W x 0.9"D (9.8 x 7 x 2.3 cm)

Duct: 3.6" (9 cm) diameter head with 8.15"L (20 cm) probe 0.75" (1.9 cm) diameter

OSA: 3.6" (9 cm) diameter head with 3.0"L (7.6 cm) probe 1.4" (3.6 cm) diameter

Weight:

Room: 0.22 lb (0.1 Kg)

Duct: 1.2 lb (0.54 Kg)

OSA: 0.6 lb (0.27 Kg)

SP: 0.2 lb (0.09 Kg)

Approvals: CE, RoHS

Warranty: 5 years

product series features

Popular room housing
Five-year warranty
Duct and OSA twist-off NEMA 4 housing
24 VDC or 24 VAC power
Field selectable current or voltage outputs
Single point field calibration
Optional temperature sensor

more information & related documents

Series Description

The ACI A/RH2 Series Relative Humidity Transmitters utilize a capacitive humidity sensor element to deliver a proportional 4 to 20 mA, 0 to 5 volt DC, or 0 to 10 volt DC output. Each relative humidity transmitter can monitor room and duct humidity as well as outside moisture. The transmitters are compatible with stainless steel wall plate applications and are designed for use in Building Automation Systems, BAS, and HVAC applications. The A/RH2 Series has on board DIP switches. These allow the user to select the desired output signal and can be powered by AC or DC power sources. Each A/RH2 Series humidity transmitter is calibrated using a NIST Traceable Temperature/Humidity Chamber. Three and five point NIST calibration certificates are available.

Kele Description

2% OUTSIDE AIR RH XMTR W/TEMP SNSR 1K OHM RTD 383

Manufacturer

ACI
