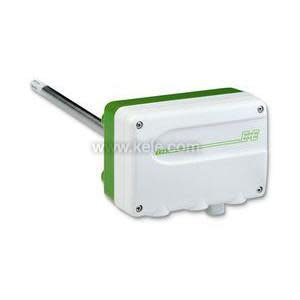

EE23-MFTB36HC01AB6T10 | E+E Elektronik | Humidity
Humidity and Temperature Transmitter, Metal Housing, Duct Mount, Stainless Steel Sintered Filter, 400 mm Probe, Coated Sensor, Relative Humidity and Temperature Outputs, 4-20 mA, -20° to 120°F
Brand:E+E Elektronik
MPN:EE23-MFTB36HC01AB6T10
SKU:EE23MB6AB610
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Accuracy
1.3%
Housing Material
Metallic
Probe Length
15.80 in
Temperature Range
-20 to 120 °F (-29 to 49 °C)
Power Requirements
24 VAC/VDC
Accessory
DCPA-1.2,DCP-1.5-W,UR
Application
Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings
Output Signal
4-20 mA
Mount
Duct
product series specifications
Accuracy:
Humidity: ±1.3%, ≤90% RH, 5° to 104°F (-15° to 40°C)
Temperature: ±0.27°F (±0.14°C)
Hysteresis: < 2% RH
Supply Voltage:
0-5 VDC: 10.5 - 35 VDC, 35 mA; 12 - 28 VAC, 0.8 VA
0-10 VDC: 15 - 35 VDC, 35 mA; 15 - 28 VAC, 1.4 VA
4-20 mA: 15 to 35 VDC, 60 mA; 15 to 28 VAC, 2.6 VA
Signal Output:4-20 mA, 0-5 VDC, 0-10 VDC
Maximum Output:Impedance: 470Ω
Minimum Output:Impedance: 5000Ω
Measurement Range: Humidity: 0-100%
Sensing Technology:
Humidity: Capacitive, HC1000-200
Temperature: 1000Ω Platinum (class A, DIN EN 60751)
Sensor Protection:sintered stainless steel filter
Operating Temperature:
Non-display: -40° to 140°F (-40° to 60°C)
With display: -22° to 140°F (-30° to 60°C)
Display:LCD, English units
Enclosure:Polycarbonate or Aluminum alloy
Enclosure Rating:NEMA 4 (IP65)
Wiring Terminations:Screw terminals maximum size wire AWG 16 (1.5 mm2)
Approvals:CE
Warranty:1 year
product series features
- Humidity and temperature calibration
- NEMA 4 housing
- Stainless steel sintered filter
- Optional alarm switch
- Optional display
more information & related documents
Series Description
The E+E EE23 Series humidity and temperature transmitter has been developed for high-precision measurement of relative humidity and temperature. EE23 Series transmitters are available for wall and duct mounting with or without the snap inmounting kit, which allows a quick and easy exchange of the transmitter. Outputs can be selected between voltage and current. A special protection coating for the sensing element permits the permanent use in very polluted environments.
Kele Description
1.3% HUM MTL DUCT 15.8IN RH TEMP 4-20MA -20/120F
Manufacturer
E+E Elektronik
EE23 Series Calibration Manual
