EE210HT3XPAXDUW005TX005N | E+E Elektronik | Humidity

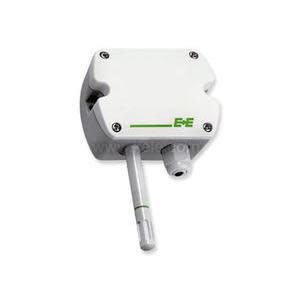

Humidity and Temperature Sensor, 0-10 VDC, Wall Mount, No Display, Stainless Steel Sintered Filter
Brand:E+E Elektronik
MPN:EE210HT3XPAXDUW005TX005N
SKU:EE210HT3XPAXD
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Accuracy
1.3%
Housing Material
Poly
Probe Length
2.16 in
Sensor Element
1K Platinum RTD 385
Enclosure Rating
IP65,NEMA 4
Power Requirements
24 VAC/VDC
Accessory
DCPA-1.2,DCP-1.5-W,UR
Application
Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications,Agriculture,Stables,Incubators,Hatchers,Green Houses,Storage Rooms,Cooling Chambers,Indoor Pools
Output Signal
0-10 VDC
Mount
Room
more information & related documents
Series Description
The E+E model EE210 relative humidity/yemperature transmitter provides RH readings at +/-1.3% accuracy using a capacitive sensor offering 10% to 90% operating range. The transmitter comes in wall, duct and remote mounting styles. The transmitter has multiple field selectable outputs including 4-20mA, 0-10V and 0-5 VDC. The supply power required can be 24 VAC or 24 VDC.
Kele Description
1.3% HUM TEMP 0-10V WALL 0/100F
Manufacturer
E+E Elektronik
Related Documents
EE210 Datasheet
