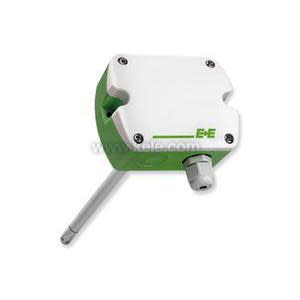

EE160-HT3XEPBB-TX083N | E+E Elektronik | Humidity
Humidity and Temperature Transmitter, 0-10 VDC, NTC 10K Passive, Duct Mount, Membrane Filter, -40° to 140°F
Brand:E+E Elektronik
MPN:EE160-HT3XEPBB-TX083N
SKU:EE160HT3XEPBB83
product specifications
Accessory
HA011059
Accuracy
2.5%
Application
Temperature,Relative Humidity
Feature
Transmitter
Housing Material
Poly
Output Signal
0-10 VDC
Probe Length
9.50 in
Sensor Element
10K Thermistor
Temperature Accuracy
0.34 °F
Temperature Range
-40 to 140 °F (-40 to 60 °C)
Type
Duct
product series specifications
Accuracy: 2.5%
Supply Voltage: 15-35 VDC, 24 VAC ±20%
Signal Output:
Voltage: 0 to 10 VDC
Current: 4-20 mA
Maximum Output Impedance mA: 500 Ω
Measurement Range: 0 to 100% RH
Sensor Protection: Membrane Filter
Operating Humidity: 10 to 95% RH
Operating Temperature: 5° to 140°F (-15° to 60°C)
Enclosure Rating: IP65
Wiring Terminations: Screw Terminals
Dimensions:
Wall: 7.5" H X 3.4" W X 4.2" D (19.0 x 8.5 x 10.5 cm)
Duct: 11.8" H X 3.4" W X 4.2" D (30.0 x 8.5 x 10.5 cm)
Approvals: CE
Weight: 0.33 lbs (0.15 kg)
Warranty: 1 Year
Enclosure: Polycarbonate
more information & related documents
Series Description
Specially designed for HVAC applications, the EE160 sensor by E+E Elektronik is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature. The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation, thus ensuring flawless operation. The EE160 employs the new humidity/temperature E+E sensor element HCT01 with excellent long term stability and resistance against pollutants. It provides an accuracy of ±2.5%RH and is available for wall or duct-mounted with current or voltage output. The EE 160 Series versatility is expanded with the configurator adapter cable (HA011059) used with the free configurator software for easy on-site adjustment of the humidity and temperature.
Kele Description
3% RH/T SENSOR 0-10V PASSIVE NTC 10K DUCT MOUNT
Manufacturer
E+E Elektronik
Related Documents
EE160 Install Guide
