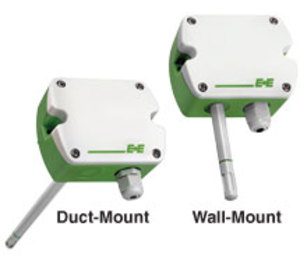

* product series image displayed

EE160-HT6XAPAB-TX076N | E+E Elektronik | Humidity

RH/T SENSOR 4-20 MA/PASSIVE PT 100 DIN A WALL MNT

Brand:E+E Elektronik

MPN:EE160-HT6XAPAB-TX076N

SKU:EE160-HT6XAPAB-TX076N

List Price:

$-.--

Today's Price:

$-.--

catalog page

product specifications

Accuracy

Output

4 - 20 mA

Power Requirements

24 VAC/VDC

Mount

Room

product series specifications

Accuracy: 2.5%

Supply Voltage: 15-35 VDC, 24 VAC ±20%

Signal Output:

Voltage: 0 to 10 VDC

Current: 4-20 mA

Maximum Output Impedance mA: 500 Ω

Measurement Range: 0 to 100% RH

Sensor Protection: Membrane Filter

Operating Humidity: 10 to 95% RH

Operating Temperature: 5° to 140°F (-15° to 60°C)

Enclosure Rating: IP65

Wiring Terminations: Screw Terminals

Dimensions:

Wall: 7.5" H X 3.4" W X 4.2" D (19.0 x 8.5 x 10.5 cm)

Duct: 11.8" H X 3.4" W X 4.2" D (30.0 x 8.5 x 10.5 cm)

Approvals: CE

Weight: 0.33 lbs (0.15 kg)

Warranty: 1 Year

Enclosure: Polycarbonate

more information & related documents

Series Description

Specially designed for HVAC applications, the EE160 sensor by E+E Elektronik is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature. The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation, thus ensuring flawless operation. The EE160 employs the new humidity/temperature E+E sensor element HCT01 with excellent long term stability and resistance against pollutants. It provides an accuracy of ±2.5%RH and is available for wall or duct-mounted with current or voltage output. The EE 160 Series versatility is expanded with the configurator adapter cable (HA011059) used with the free configurator software for easy on-site adjustment of the humidity and temperature.

Kele Description

3% RH/T SENSOR 4-20 MA/PASSIVE PT 100 DIN A WALL MNT

Manufacturer

E+E Elektronik
